目录查询：
-

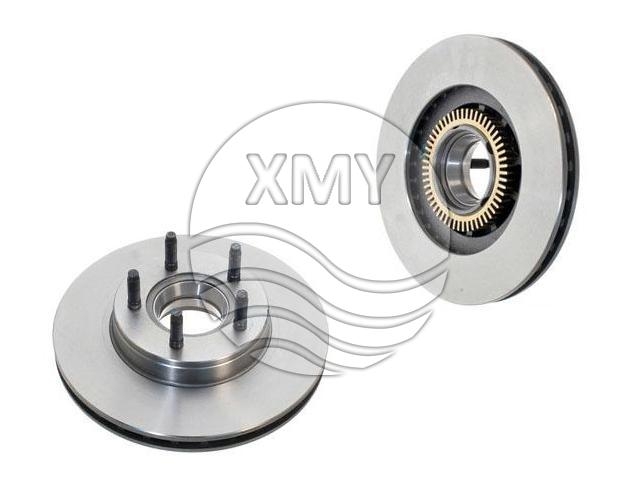

参考号:ZZM2-33-251
Front Axle
Height : 57.6 mm
Diameter : 285.8 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 26 mm
Minimum Thickness : 24.5 mm
Num. of holes : 5
Solid or Vented : V -

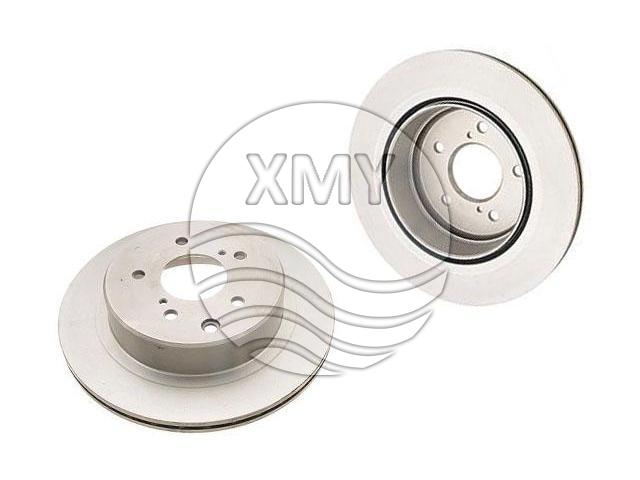

参考号:43206-43P01
Rear Axle
Height : 63.9 mm
Diameter : 296.9 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 18 mm
Minimum Thickness : 16 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.9 kg -
Rear Axle
Height : 53.2 mm
Diameter : 260.8 mm
Centering Diameter : 66 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 10 mm
Minimum Thickness : 8 mm
Num. of holes : 4
Solid or Vented : S -

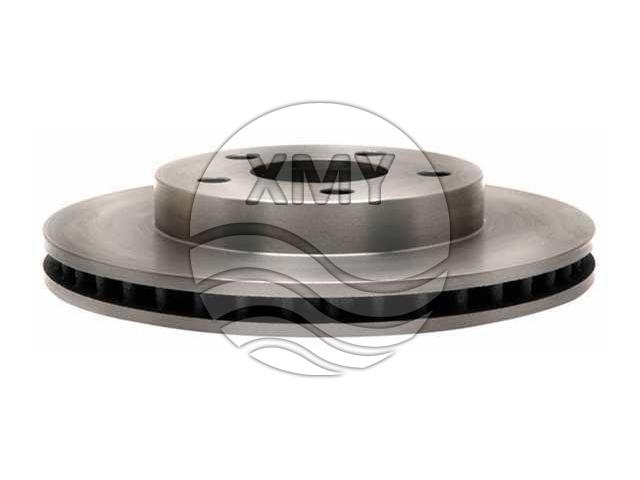

参考号:F1SZ-2C026-A
Rear Axle
Height : 45.2 mm
Diameter : 258 mm
Centering Diameter : 64.5 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22.7 mm
Num. of holes : 5
Solid or Vented : V -
Rear Axle
Height : 49 mm
Diameter : 340 mm
Pitch Circle Diameter : 120.7 mm
Brake Disc Thickness : 26 mm
Minimum Thickness : 24 mm
Num. of holes : 5
Solid or Vented : V -

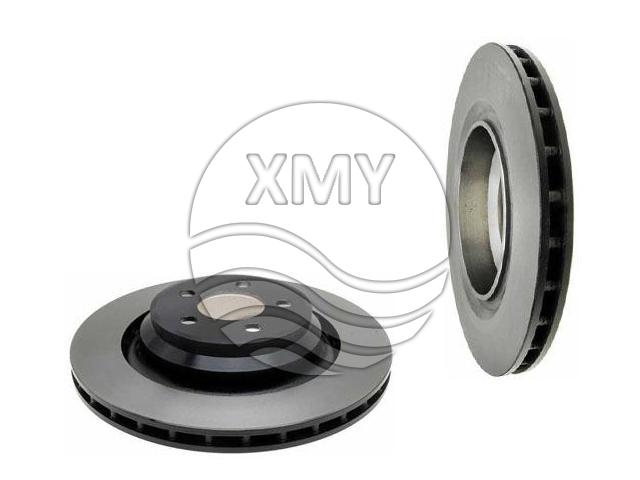

参考号:5290538AB
Rear Axle
Height : 68 mm
Diameter : 350.5 mm
Centering Diameter : 72.6 mm
Pitch Circle Diameter : 115 mm
Brake Disc Thickness : 28 mm
Minimum Thickness : 26 mm
Num. of holes : 5
Solid or Vented : V -
参考号:43206-0P601
Rear Axle
Height : 63.9 mm
Diameter : 291.7 mm
Centering Diameter : 68.1 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 16 mm
Minimum Thickness : 14 mm
Num. of holes : 5
Solid or Vented : V -

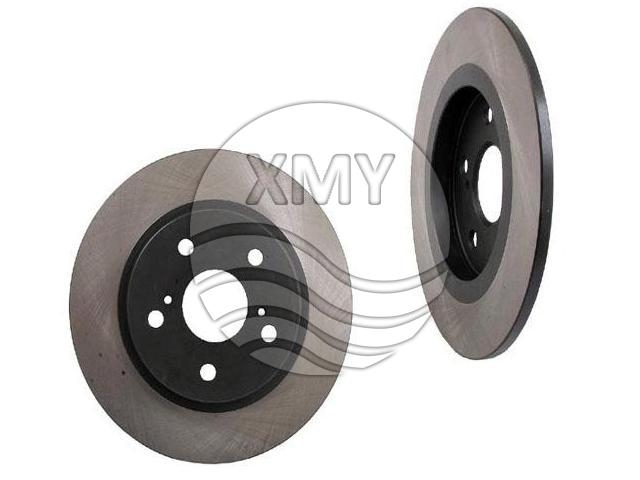

参考号:42431-12290
Rear Axle
Height : 60.2 mm
Diameter : 278.6 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 9.9 mm
Minimum Thickness : 8.6 mm
Num. of holes : 5
Solid or Vented : S -

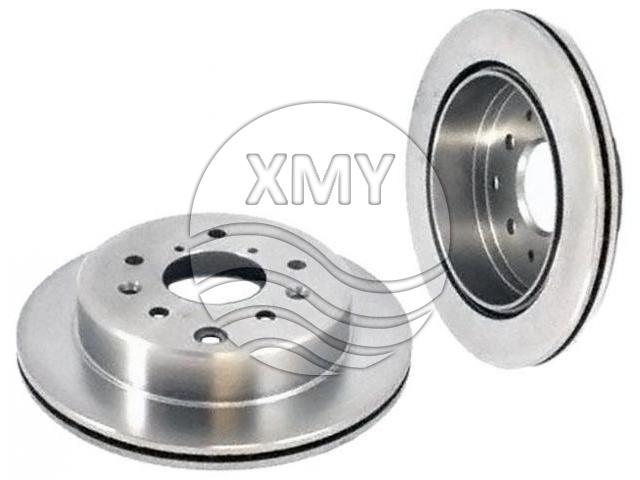

参考号:HF66-26-251
Rear Axle
Height : 55.2 mm
Diameter : 265.9 mm
Centering Diameter : 68.1 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 18.2 mm
Minimum Thickness : 16 mm
Num. of holes : 5
Solid or Vented : V -
Rear Axle
Height : 71.1 mm
Diameter : 316.6 mm
Centering Diameter : 72.1 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 22 mm
Minimum Thickness : 20.6 mm
Num. of holes : 6
Solid or Vented : V
