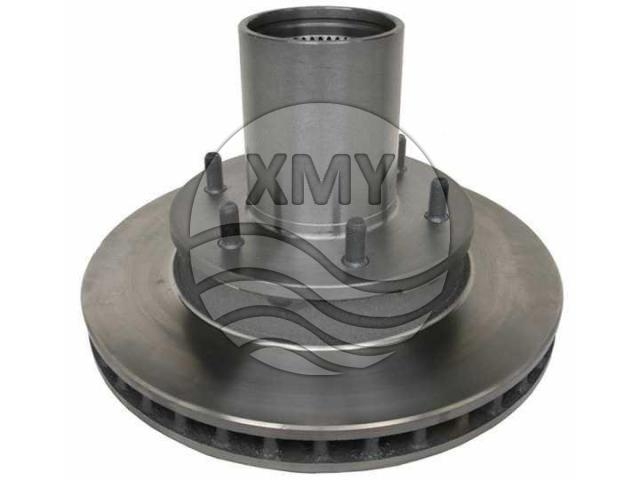

Front Axle
Height : 117.5 mm
Diameter : 301.2 mm
Pitch Circle Diameter : 120.7 mm
Brake Disc Thickness : 26.3 mm
Minimum Thickness : 24.5 mm
Num. of holes : 5
Solid or Vented : V -

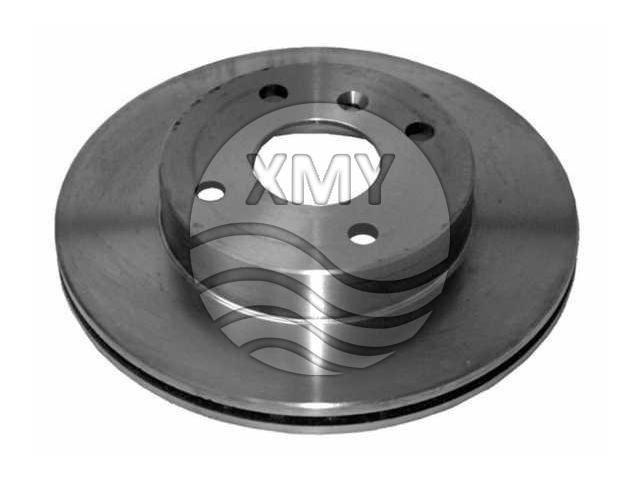

参考号:43512-87719-000
Front Axle
Height : 46.8 mm
Diameter : 233.8 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 18 mm
Minimum Thickness : 17 mm
Num. of holes : 4
Solid or Vented : V -
Front Axle
Height : 38 mm
Diameter : 265.1 mm
Centering Diameter : 61.2 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22.5 mm
Num. of holes : 5
Solid or Vented : V -
Rear Axle
Height : 31 mm
Diameter : 255.2 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 10.4 mm
Minimum Thickness : 9.5 mm
Num. of holes : 5
Solid or Vented : S -
Front Axle
Height : 55.2 mm
Diameter : 275.8 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 22.2 mm
Minimum Thickness : 20.6 mm
Num. of holes : 5
Solid or Vented : V -

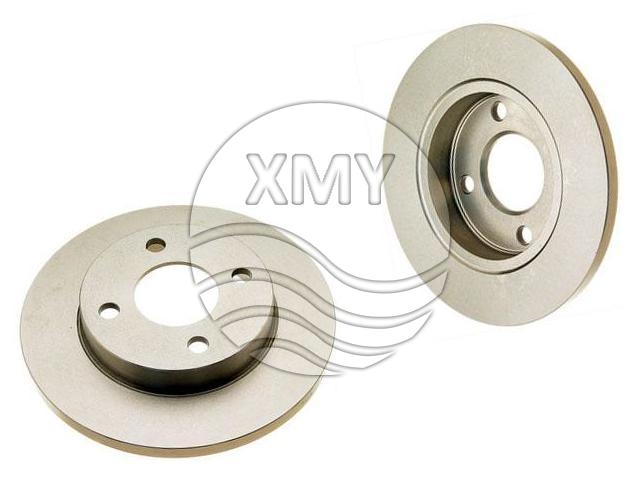

参考号:4313591
Front Axle
Height : 38.1 mm
Diameter : 231.8 mm
Centering Diameter : 61.2 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 12.7 mm
Minimum Thickness : 10.9 mm
Num. of holes : 4
Solid or Vented : S -
Rear Axle
Height : 64 mm
Diameter : 267.5 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22.7 mm
Num. of holes : 5
Solid or Vented : V -
Front Axle
Height : 179.3 mm
Diameter : 301.2 mm
Pitch Circle Diameter : 139.7 mm
Brake Disc Thickness : 32.6 mm
Minimum Thickness : 30.9 mm
Num. of holes : 6
Solid or Vented : V -
参考号:703859
Front Axle
Height : 125.7 mm
Diameter : 301.2 mm
Pitch Circle Diameter : 127 mm
Brake Disc Thickness : 32.8 mm
Minimum Thickness : 31 mm
Num. of holes : 5
Solid or Vented : V -
Front Axle
Height : 126.6 mm
Diameter : 298.5 mm
Pitch Circle Diameter : 139.7 mm
Brake Disc Thickness : 31.6 mm
Minimum Thickness : 30 mm
Num. of holes : 5
Solid or Vented : V
