参考号:631 420 01 72
Front Axle
Height : 82 mm
Diameter : 263 mm
Centering Diameter : 102 mm
Pitch Circle Diameter : 140 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22 mm
Num. of holes : 5
Solid or Vented : V
Weight : 7.8 kg -
参考号:204 421 09 12
Front Axle
Height : 64.5 mm
Diameter : 295 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 28.0 mm
Minimum Thickness : 25.4 mm
Num. of holes : 5
Solid or Vented : P/V -

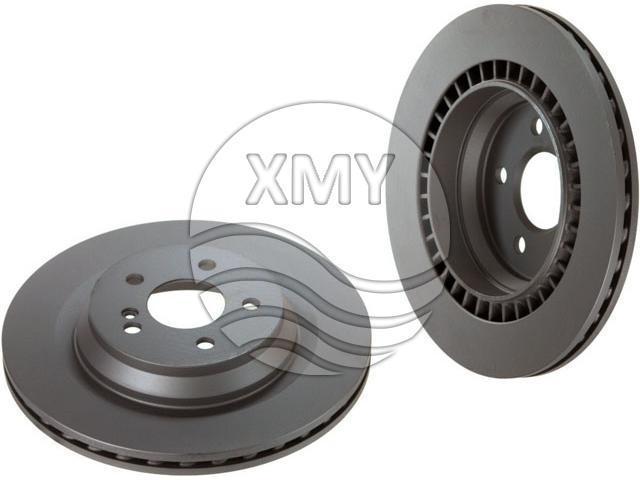

参考号:221 423 04 12
Rear Axle
Height : 58 mm
Diameter : 320 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 21.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 8.2 kg -

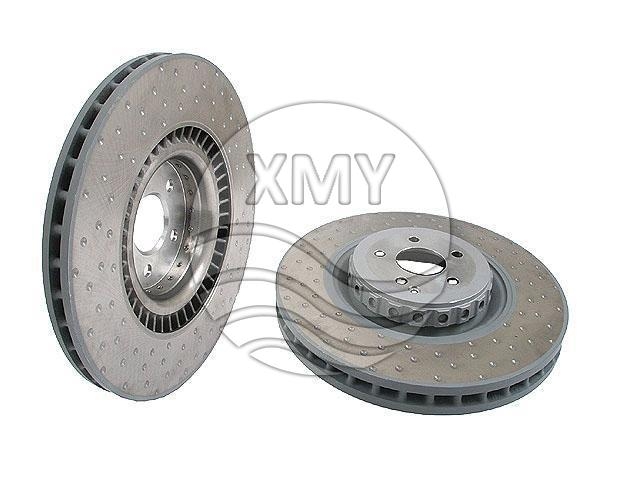

参考号:A 221 421 09 12
Front Axle
Height : 60.3 mm
Diameter : 365 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 36 mm
Minimum Thickness : 33.4 mm
Num. of holes : 5
Solid or Vented : V -

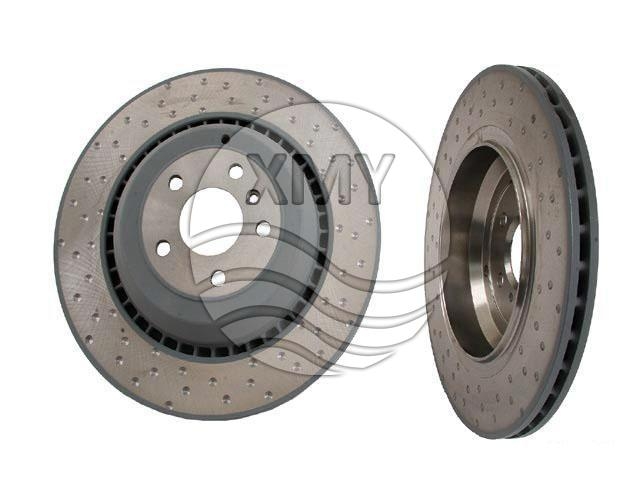

参考号:164 423 08 12
Rear Axle
Height : 58 mm
Diameter : 365 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 26 mm
Minimum Thickness : 23.4 mm
Num. of holes : 5
Solid or Vented : V -
参考号:164 421 07 12
Front Axle
Height : 55.1 mm
Diameter : 390 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 36 mm
Minimum Thickness : 34.4 mm
Solid or Vented : V -

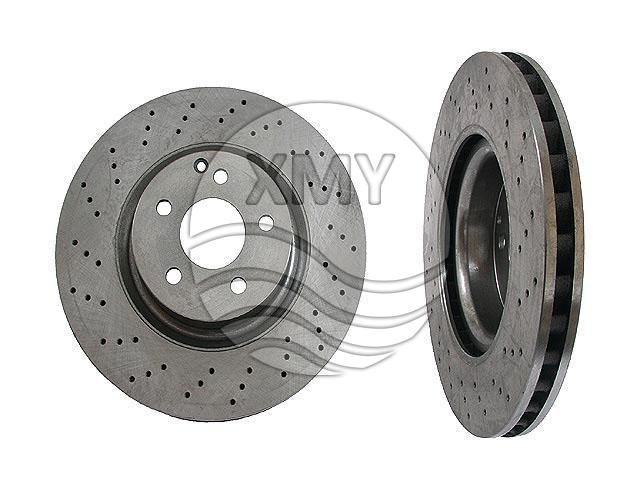

参考号:221 421 06 12
Front Axle
Height :64.5 mm
Diameter : 335 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 32 mm
Minimum Thickness : 30 mm
Num. of holes : 5
Solid or Vented : V -

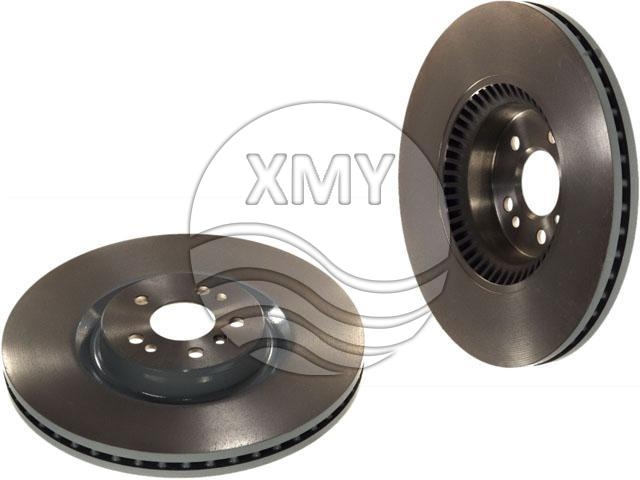

参考号:164 421 06 12
Front Axle
Height : 54.5 mm
Diameter : 375 mm
Centering Diameter : 67 mm
Brake Disc Thickness : 32 mm
Minimum Thickness : 29.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 16 kg -

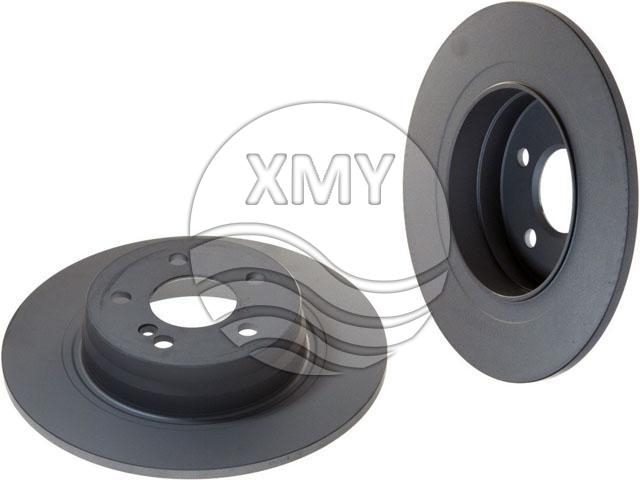

参考号:204 423 06 12
Rear Axle
Height : 57.5 mm
Diameter : 300 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 10 mm
Minimum Thickness : 8.3 mm
Num. of holes : 5
Solid or Vented : S
Weight : 5 kg -
