目录查询：
-
参考号:50 10 216 932
Front Axle
Height : 140 mm
Diameter : 322 mm
Centering Diameter : 215 mm
Pitch Circle Diameter : 245 mm
Brake Disc Thickness : 30.0 mm
Minimum Thickness : 27.5 mm
Num. of holes : 6
Solid or Vented : V
Weight : 16.98 kg -
Front Axle
Height : 56 mm
Diameter : 294 mm
Centering Diameter : 96 mm
Pitch Circle Diameter : 140 mm
Brake Disc Thickness : 26 mm
Minimum Thickness : 24 mm
Num. of holes : 6
Solid or Vented : V
Weight : 7.8 kg -
Front Axle
Height : 55 mm
Diameter : 296 mm
Centering Diameter : 96 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22 mm
Num. of holes : 6
Solid or Vented : V -

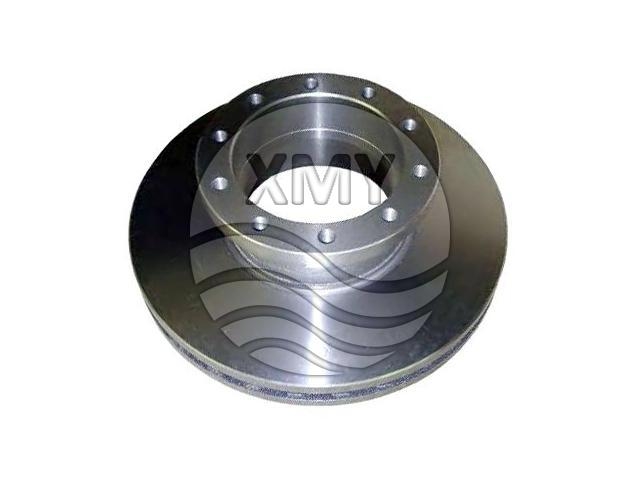

参考号:AMPB860
Front Axle
Height : 128 mm
Diameter : 375 mm
Centering Diameter : 155 mm
Pitch Circle Diameter : 185 mm
Brake Disc Thickness : 44.0 mm
Minimum Thickness : 40 mm
Num. of holes : 10
Solid or Vented : V
Weight : 26.7 kg -
参考号:55311-57K00
Front Axle
Height : 40 mm
Diameter : 276 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 20 mm
Minimum Thickness : 18 mm
Num. of holes : 5
Solid or Vented : V -
参考号:55611-80J10
Rear Axle
Height : 43.4 mm
Diameter : 278 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 9 mm
Minimum Thickness : 8 mm
Num. of holes : 5
Solid or Vented : V
Weight : 3.9 kg -
参考号:55311-68L00
Front Axle
Height : 40 mm
Diameter : 256 mm
Centering Diameter : 60 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 22 mm
Minimum Thickness : 20 mm
Num. of holes : 4
Solid or Vented : V
Weight : 4.7 kg -
Rear Axle
Height : 160 mm
Diameter : 434 mm
Centering Diameter : 190 mm
Pitch Circle Diameter : 256 mm
Brake Disc Thickness : 45.0 mm
Minimum Thickness : 40 mm
Num. of holes : 12
Solid or Vented : S
Weight : 46.2 kg -
Rear Axle
Height : 43.2 mm
Diameter : 259 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 9 mm
Minimum Thickness : 8 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.6 kg -
Front Axle
Height : 39 mm
Diameter : 302 mm
Centering Diameter : 72.5 mm
Brake Disc Thickness : 28 mm
Minimum Thickness : 26.4 mm
Num. of holes : 5
Solid or Vented : V
