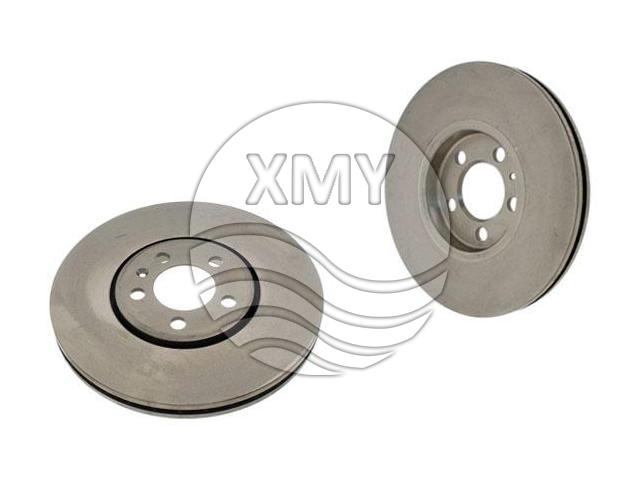

参考号:3A0 615 301 A
Front Axle
Height : 28.2 mm
Diameter : 287.5 mm
Centering Diameter : 65 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 25.1 mm
Minimum Thickness : 23.1 mm
Num. of holes : 5
Solid or Vented : RV
Weight : 7.1 kg -

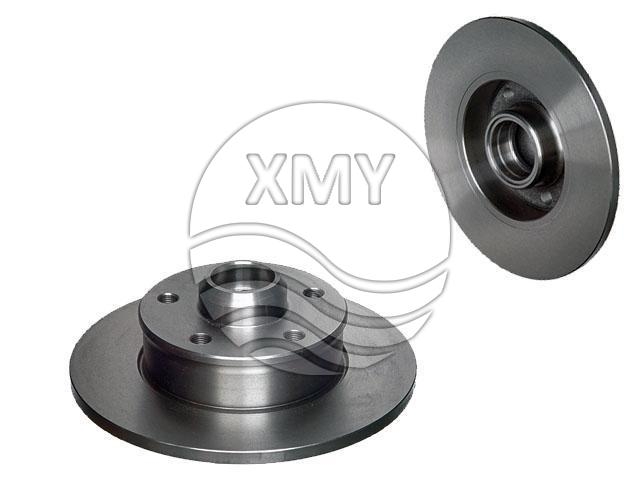

参考号:357 615 601 B
Rear Axle
Height : 71.5 mm
Diameter : 226 mm
Centering Diameter : 39.9 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4.4 kg -
Front Axle
Height : 39.2 mm
Diameter : 255.6 mm
Centering Diameter : 65 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 12.9 mm
Minimum Thickness : 11 mm
Num. of holes : 4
Solid or Vented : S
Weight : 4.15 kg -
参考号:34 21 6 765 889
Rear Axle
Height : 74 mm
Diameter : 345 mm
Centering Diameter : 79 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 10 kg -
参考号:34 21 6 764 655
Rear Axle
Height : 67.3 mm
Diameter : 336 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 20.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 8.2 kg -
参考号:34 21 6 764 653
Rear Axle
Height : 66 mm
Diameter : 300 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 20.0 mm
Minimum Thickness : 18.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.6 kg -
参考号:34 21 6 764 647
Rear Axle
Height : 65.5 mm
Diameter : 280 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8.4 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4.4 kg -
参考号:34 21 6 753 215
Rear Axle
Height : 61.2 mm
Diameter : 320 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 20 mm
Minimum Thickness : 18.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 7.4 kg -
参考号:34 21 4 031 725
Rear Axle
Height : 65.5 mm
Diameter : 296 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 10.4 mm
Minimum Thickness : 8.9 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4.9 kg -
Rear Axle, Right
Height : 61 mm
Diameter : 312 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 20.0 mm
Minimum Thickness : 18.4 mm
Num. of holes : 5
Solid or Vented : V
