目录查询：
-
参考号:34 10 6 787 490
Front Axle
Height : 73.1 mm
Diameter : 328 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 28 mm
Minimum Thickness : 26.4 mm
Number Of Holes : 5
Solid Or Vented : V
Weight : 10.2 kg -
Front Axle
Height : 73 mm
Diameter : 348 mm
Centering Diameter : 79 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 30 mm
Minimum Thickness : 28.4 mm
Number Of Holes : 5
Solid Or Vented : V
Weight : 11.1 kg -
参考号:34 11 6 775 277
Front Axle
Height : 66 mm
Diameter : 348 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 30 mm
Minimum Thickness : 28.4 mm
Number Of Holes : 5
Solid Or Vented : V
Weight : 11.4 kg -

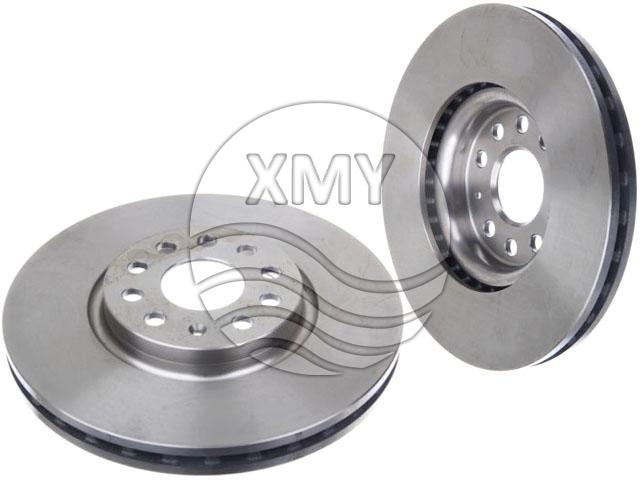

参考号:1K0 615 301 AJ
Front Axle
Height : 49.6 mm
Diameter : 314 mm
Centering Diameter : 65 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 30 mm
Minimum Thickness : 27 mm
Number Of Holes : 9
Solid Or Vented : V
Weight : 9.4 kg -

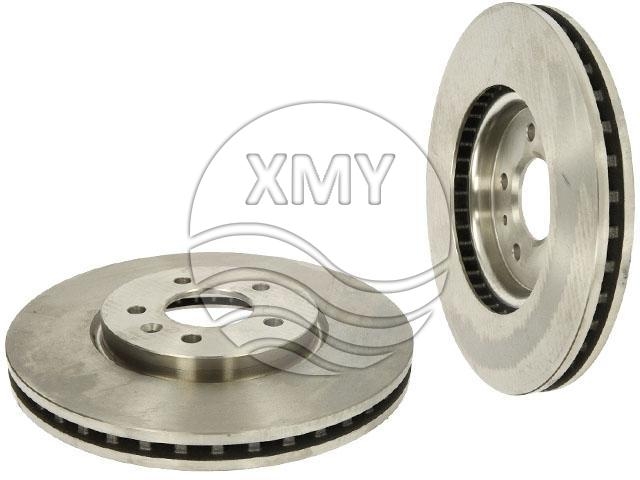

参考号:13586854
Front Axle
Height : 45.5 mm
Diameter : 321 mm
Centering Diameter : 70.7 mm
Pitch Circle Diameter : 115 mm
Brake Disc Thickness : 30 mm
Minimum Thickness : 27 mm
Number Of Holes : 5
Solid Or Vented : V
Weight : 9.9 kg -
参考号:4G0 615 301 A
Front Axle
Height : 52.4 mm
Diameter : 356 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 34 mm
Minimum Thickness : 31.5 mm
Number Of Holes : 5
Solid Or Vented : V
Weight : 13.6 kg -
Front Axle, Right
Height : 62 mm
Diameter : 385 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 36 mm
Minimum Thickness : 34.4 mm
Number Of Holes : 5
Solid Or Vented : V -
Front Axle, Left
Height : 62 mm
Diameter : 385 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 36 mm
Minimum Thickness : 34.4 mm
Number Of Holes : 5
Solid Or Vented : V -
参考号:34 11 6 789 544
Front Axle, Right
Height : 66 mm
Diameter : 374 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 36 mm
Minimum Thickness : 34.4 mm
Number Of Holes : 5
Solid Or Vented : V -
参考号:34 11 6 789 543
Front Axle, Left
Height : 66 mm
Diameter : 374 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 36 mm
Minimum Thickness : 34.4 mm
Number Of Holes : 5
Solid Or Vented : V
