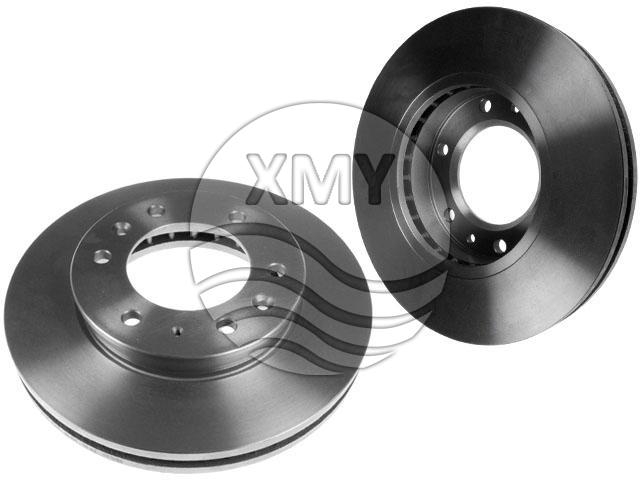

参考号:1742318
Front Axle
Height : 61 mm
Diameter : 302 mm
Centering Diameter : 98 mm
Pitch Circle Diameter : 139.7 mm
Brake Disc Thickness : 32 mm
Minimum Thickness : 30 mm
Number Of Holes : 6
Solid Or Vented : V
Weight : 10.5 kg -
Front Axle
Height : 52 mm
Diameter : 297 mm
Centering Diameter : 70.8 mm
Pitch Circle Diameter : 115 mm
Brake Disc Thickness : 32 mm
Minimum Thickness : 30.7 mm
Number Of Holes : 5
Solid Or Vented : V
Weight : 8.5 kg -
Rear Axle
Height : 35 mm
Diameter : 300 mm
Centering Diameter : 67.5 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 12 mm
Minimum Thickness : 10 mm
Number Of Holes : 5
Solid Or Vented : S
Weight : 5.75 kg -
Front Axle
Height : 52 mm
Diameter : 300 mm
Centering Diameter : 63.7 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 28 mm
Minimum Thickness : 26 mm
Number Of Holes : 5
Solid Or Vented : V
Weight : 8.5 kg -
Rear Axle
Height : 90.2 mm
Diameter : 290 mm
Centering Diameter : 52.3 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 11 mm
Minimum Thickness : 9.5 mm
Number Of Holes : 5
Solid Or Vented : S
Weight : 8.5 kg -

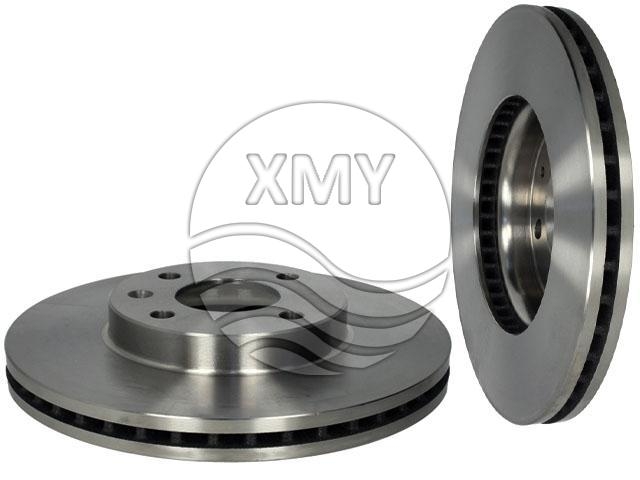

参考号:13502001
Front Axle
Height : 45.5 mm
Diameter : 256 mm
Centering Diameter : 60 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 21 mm
Number Of Holes :4
Solid Or Vented : V
Weight : 5.6 kg -

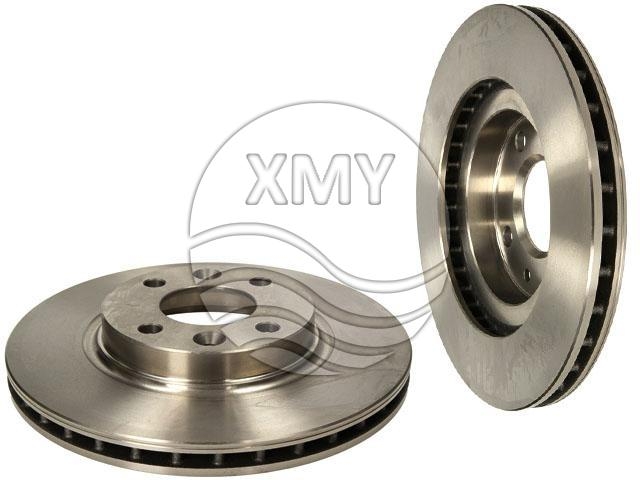

参考号:40206-2212R
Front Axle
Height : 44 mm
Diameter : 258 mm
Centering Diameter : 61 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 22 mm
Minimum Thickness : 19.8 mm
Number Of Holes : 4
Solid Or Vented : V
Weight : 4.7 kg -

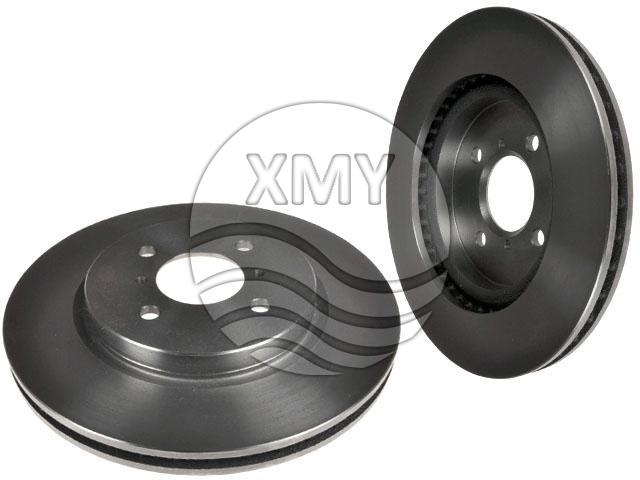

参考号:55311-71L50
Front Axle
Height : 40 mm
Diameter : 272 mm
Centering Diameter : 60 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 22 mm
Minimum Thickness : 20 mm
Number Of Holes : 4
Solid Or Vented : V
Weight : 5.3 kg -
参考号:3Q0 615 601
Rear Axle
Height : 48.3 mm
Diameter : 300 mm
Centering Diameter : 65 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 12 mm
Minimum Thickness : 10 mm
Number Of Holes : 5
Solid Or Vented : S
Weight : 5.2 kg -

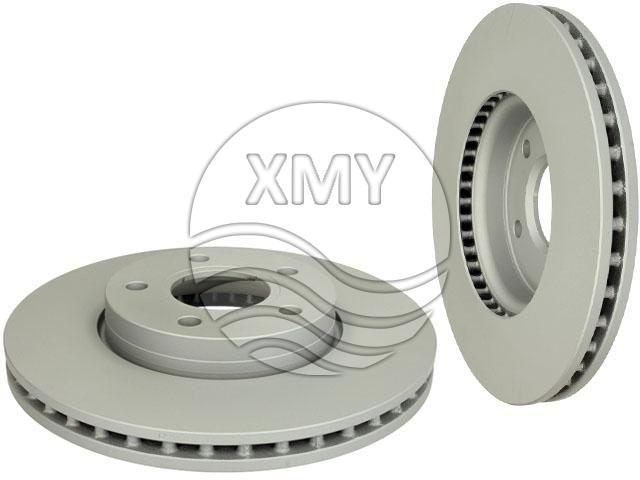

参考号:31381374
Front Axle
Height : 48.5 mm
Diameter : 278 mm
Centering Diameter : 63.6 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 25 mm
Minimum Thickness : 23 mm
Number Of Holes : 5
Solid Or Vented : V
Weight : 6.5 kg
