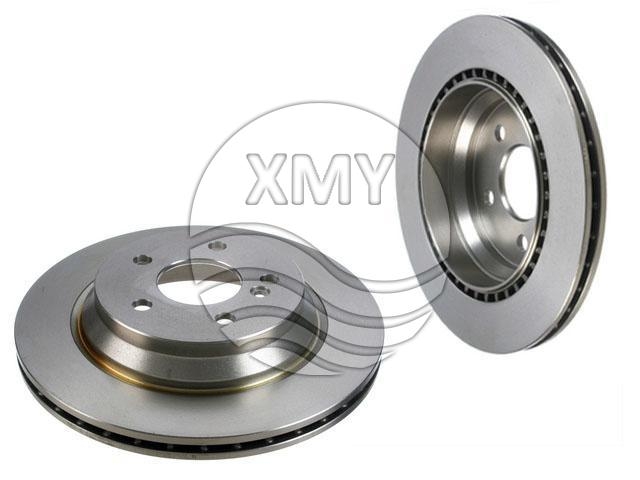

参考号:230 423 04 12
Rear Axle
Height : 58.3 mm
Diameter : 300 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 22 mm
Minimum Thickness : 19.4 mm
Num. of holes : 5
Solid or Vented : V -

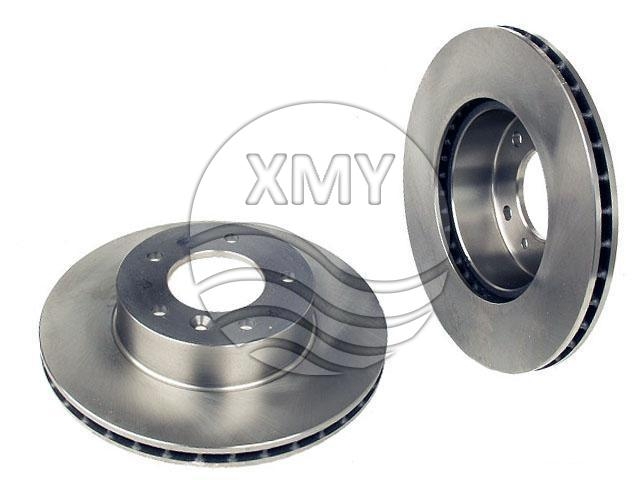

参考号:JLM1305
Front Axle
Height : 66.5 mm
Diameter : 295 mm
Centering Diameter : 80 mm
Pitch Circle Diameter : 120.7 mm
Brake Disc Thickness : 22.5 mm
Minimum Thickness : 21 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.75 kg -

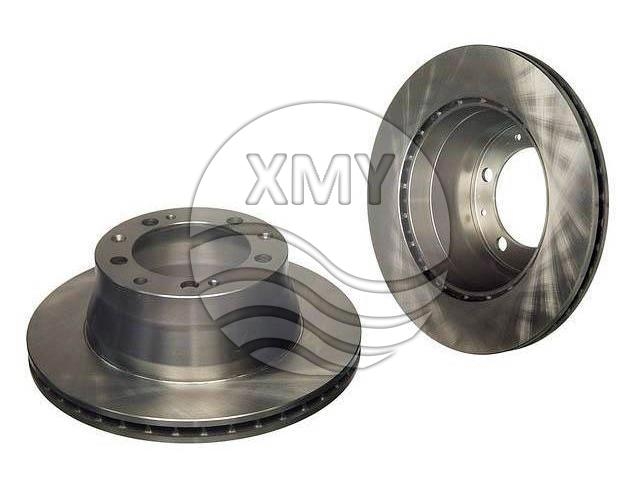

参考号:951.352.041.01
Rear Axle
Height : 71 mm
Diameter : 299 mm
Centering Diameter : 103 mm
Pitch Circle Diameter : 130 mm
Brake Disc Thickness : 24.0 mm
Minimum Thickness : 22 mm
Num. of holes : 5
Solid or Vented : V -
Rear Axle
Height : 100 mm
Diameter : 299 mm
Centering Diameter : 103 mm
Pitch Circle Diameter : 130 mm
Brake Disc Thickness : 24.0 mm
Minimum Thickness : 22 mm
Num. of holes : 5
Solid or Vented : V -

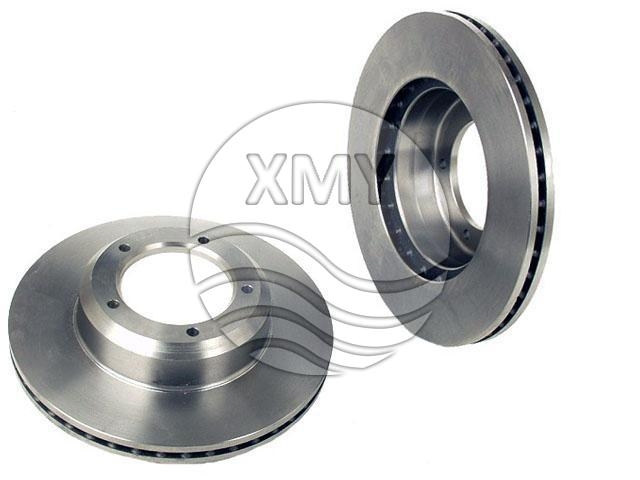

参考号:FTC902
Front Axle
Height : 70 mm
Diameter : 298.5 mm
Centering Diameter : 101.6 mm
Pitch Circle Diameter : 127 mm
Brake Disc Thickness : 24.0 mm
Minimum Thickness : 22 mm
Num. of holes : 5
Solid or Vented : V
Weight : 8.25 kg -

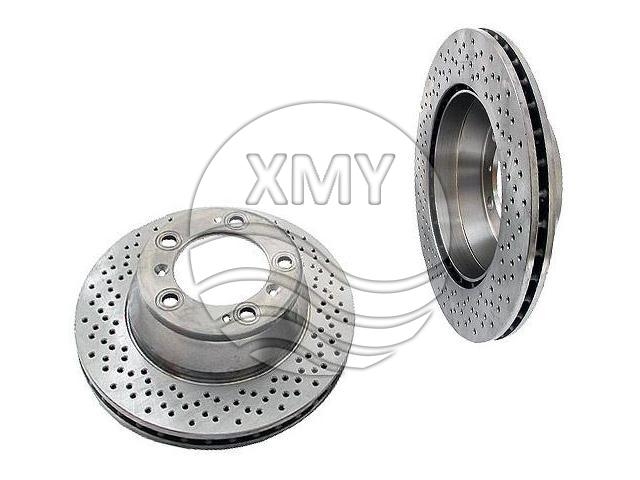

参考号:996.352.401.04
Rear Axle
Height : 75 mm
Diameter : 299 mm
Centering Diameter : 98 mm
Pitch Circle Diameter : 130 mm
Brake Disc Thickness : 24.0 mm
Minimum Thickness : 22 mm
Num. of holes : 5
Solid or Vented : P/V -
Rear Axle
Height : 65 mm
Diameter : 299 mm
Centering Diameter : 103 mm
Pitch Circle Diameter : 130 mm
Brake Disc Thickness : 24.0 mm
Minimum Thickness : 22 mm
Num. of holes : 5
Solid or Vented : V -
Front Axle
Height : 35 mm
Diameter : 282.5 mm
Centering Diameter : 107 mm
Pitch Circle Diameter : 126 mm
Brake Disc Thickness : 24.0 mm
Minimum Thickness : 22.6 mm
Num. of holes : 5
Solid or Vented : V -

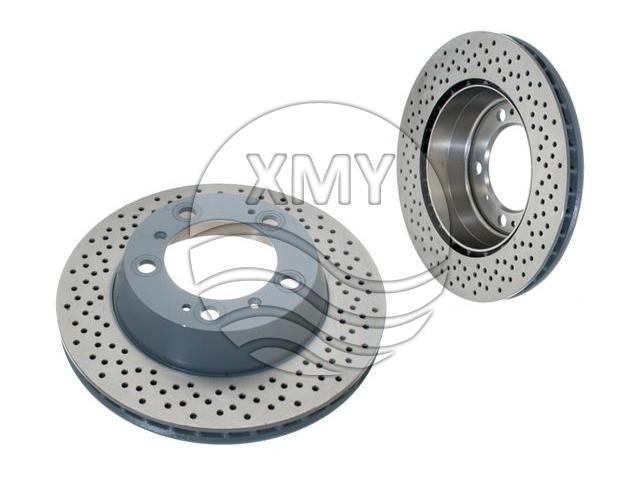

参考号:986.352.403.01
Rear Axle
Height : 67 mm
Diameter : 299 mm
Centering Diameter : 98 mm
Pitch Circle Diameter : 130 mm
Brake Disc Thickness : 24.0 mm
Minimum Thickness : 22 mm
Num. of holes : 5
Solid or Vented : P/V -
参考号:447 615 301 B
Front Axle
Height : 46.5 mm
Diameter : 276 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 25.0 mm
Minimum Thickness : 23 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.8 kg
