Front Axle
Height : 60 mm
Diameter : 271 mm
Centering Diameter : 104 mm
Pitch Circle Diameter : 133 mm
Brake Disc Thickness : 13 mm
Minimum Thickness : 10.5 mm
Num. of holes : 6
Solid or Vented : S
Weight : 5.7 kg -

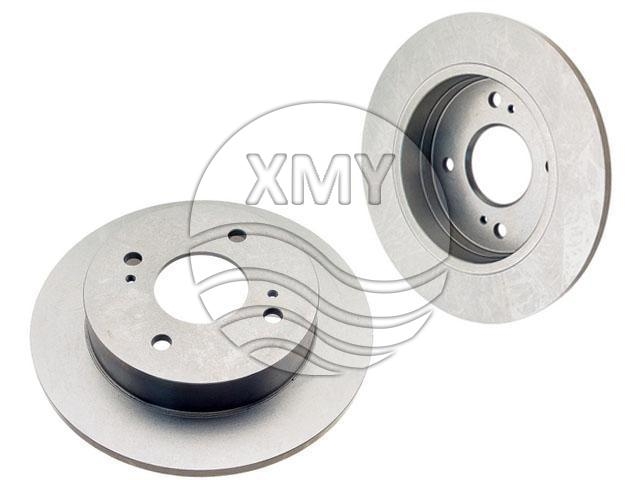

参考号:43206-N9502
Rear Axle
Height : 47 mm
Diameter : 258 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 114 mm
Brake Disc Thickness : 10 mm
Minimum Thickness : 9 mm
Num. of holes : 4
Solid or Vented : S
Weight : 4.1 kg -
参考号:40206-P6502
Front Axle
Height : 29 mm
Diameter : 252 mm
Centering Diameter : 81 mm
Pitch Circle Diameter : 103 mm
Brake Disc Thickness : 20 mm
Minimum Thickness : 18 mm
Num. of holes : 4
Solid or Vented : V -

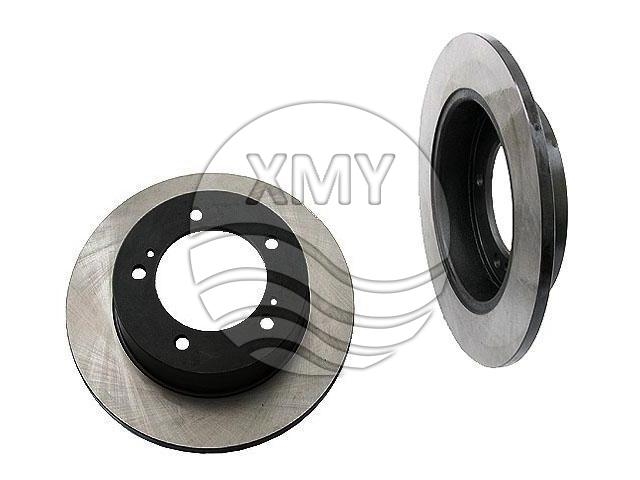

参考号:55211-80000
Front Axle
Height : 46 mm
Diameter : 290 mm
Centering Diameter : 107 mm
Pitch Circle Diameter : 140 mm
Brake Disc Thickness : 10 mm
Minimum Thickness : 9 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4.7 kg -

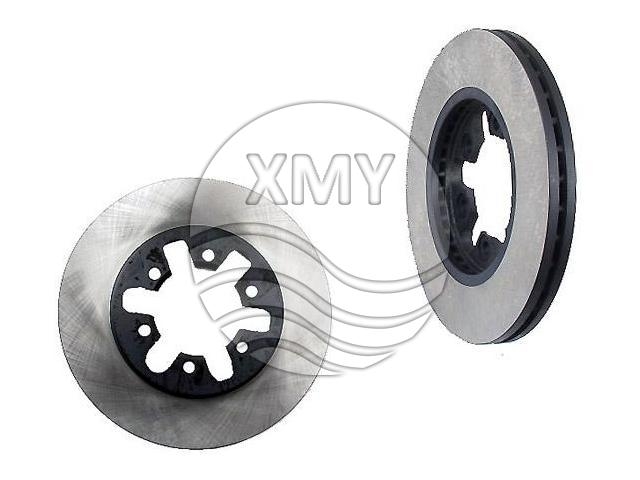

参考号:40206-09W01
Front Axle
Height : 30 mm
Diameter : 250 mm
Centering Diameter : 81 mm
Pitch Circle Diameter : 103 mm
Brake Disc Thickness : 22 mm
Minimum Thickness : 20 mm
Num. of holes : 6
Solid or Vented : V
Weight : 5.1 kg -
参考号:40206-R8211
Front Axle
Height : 29 mm
Diameter : 252 mm
Centering Diameter : 81 mm
Pitch Circle Diameter : 103 mm
Brake Disc Thickness : 20 mm
Minimum Thickness : 18 mm
Num. of holes : 6
Solid or Vented : V
Weight : 4.65 kg -

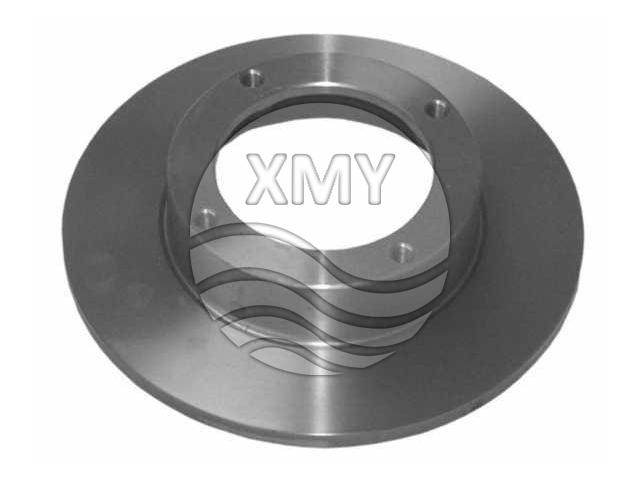

参考号:45251-634-921
Front Axle
Height : 44 mm
Diameter : 226 mm
Centering Diameter : 92 mm
Pitch Circle Diameter : 116 mm
Brake Disc Thickness : 10 mm
Minimum Thickness : 9 mm
Num. of holes : 4
Solid or Vented : S
Weight : 2.65 kg -

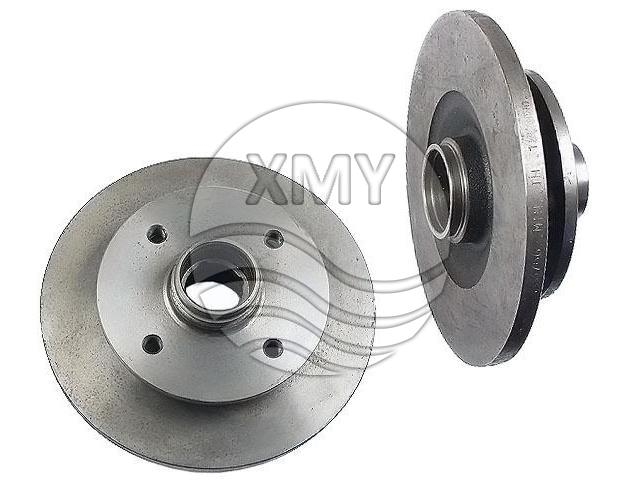

参考号:8173-33-251A
Front Axle
Height : 96 mm
Diameter : 231 mm
Centering Diameter : 45.2 mm
Pitch Circle Diameter : 110 mm
Brake Disc Thickness : 13 mm
Minimum Thickness : 12 mm
Num. of holes : 4
Solid or Vented : S
Weight : 4.71 kg -

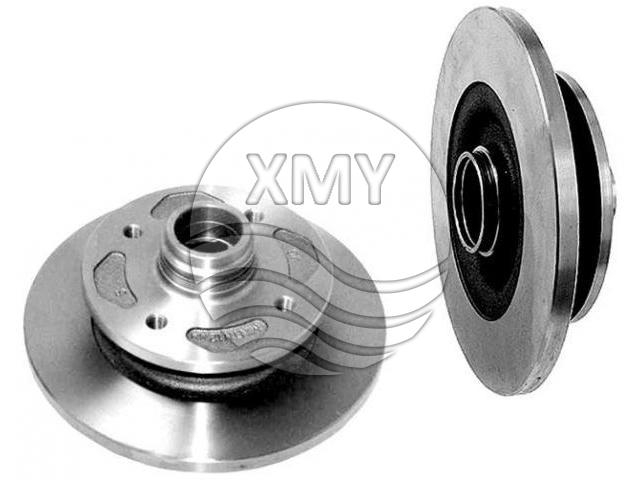

参考号:8569-33-251A
Front Axle
Height : 96 mm
Diameter : 230 mm
Centering Diameter : 39.8 mm
Pitch Circle Diameter : 110 mm
Brake Disc Thickness : 13 mm
Minimum Thickness : 12 mm
Num. of holes : 4
Solid or Vented : S
Weight : 5.47 kg -
Front Axle
Height : 52 mm
Diameter : 230 mm
Centering Diameter : 70 mm
Pitch Circle Diameter : 90 mm
Brake Disc Thickness : 13 mm
Minimum Thickness : 10 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.9 kg
