参考号:5 027 174
Rear Axle
Height : 43 mm
Diameter : 273 mm
Centering Diameter : 64 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 20 mm
Minimum Thickness : 18 mm
Num. of holes : 5
Solid or Vented : V -
参考号:91GX 1125 AA
Front Axle
Height : 53 mm
Diameter : 278 mm
Centering Diameter : 64 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22.2 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.5 kg -

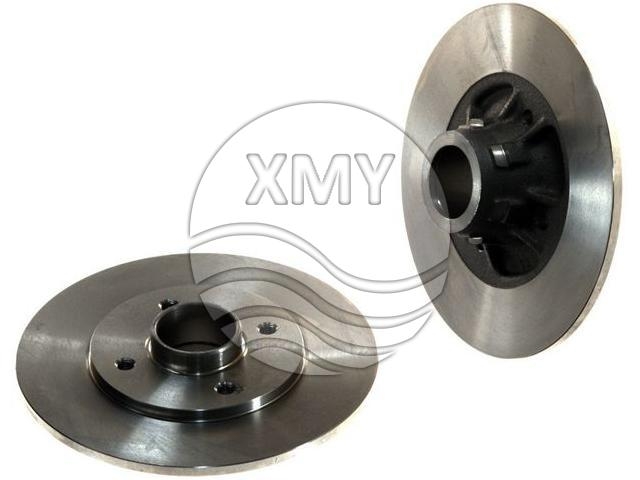

参考号:77 00 780 078
Rear Axle
Height : 75 mm
Diameter : 238 mm
Centering Diameter : 52 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 8 mm
Minimum Thickness : 7 mm
Num. of holes : 4
Solid or Vented : S
Weight : 4.1 kg -

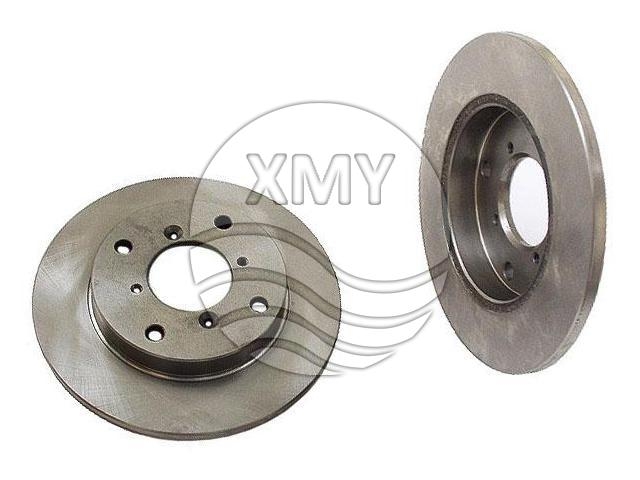

参考号:55611-64B02
Rear Axle
Height : 35 mm
Diameter : 240 mm
Centering Diameter : 64 mm
Pitch Circle Diameter : 114 mm
Brake Disc Thickness : 10 mm
Minimum Thickness : 8 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.3 kg -
参考号:43512-87704
Front Axle
Height : 28 mm
Diameter : 208 mm
Centering Diameter : 47 mm
Pitch Circle Diameter : 91 mm
Brake Disc Thickness : 11 mm
Minimum Thickness : 10 mm
Num. of holes : 4
Solid or Vented : S
Weight : 2.5 kg -
参考号:77 00 805 006
Rear Axle
Height : 74.6 mm
Diameter : 238 mm
Centering Diameter : 52.3 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 8.0 mm
Minimum Thickness : 7 mm
Num. of holes : 4
Solid or Vented : S
Weight : 4 kg -

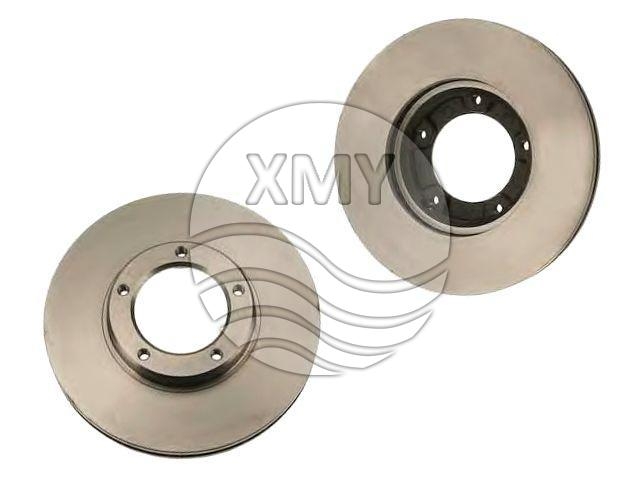

参考号:43512-26090
Front Axle
Height : 47 mm
Diameter : 255 mm
Centering Diameter : 84 mm
Pitch Circle Diameter : 110 mm
Brake Disc Thickness : 25 mm
Minimum Thickness : 23 mm
Num. of holes : 5
Solid or Vented : V
Weight : 5.7 kg -
Front Axle
Height : 45 mm
Diameter : 261 mm
Centering Diameter : 95 mm
Pitch Circle Diameter : 118 mm
Brake Disc Thickness : 25 mm
Minimum Thickness : 24 mm
Num. of holes : 5
Solid or Vented : V
Weight : 5.9 kg -
Front Axle
Height : 40.5 mm
Diameter : 257 mm
Centering Diameter : 59 mm
Pitch Circle Diameter : 98 mm
Brake Disc Thickness : 20.0 mm
Minimum Thickness : 18.2 mm
Num. of holes : 5
Solid or Vented : V
Weight : 4.9 kg -
参考号:43512-12140
Front Axle
Height : 38 mm
Diameter : 234 mm
Centering Diameter : 64 mm
Pitch Circle Diameter : 87 mm
Brake Disc Thickness : 13 mm
Minimum Thickness : 11.5 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.6 kg
