Front Axle
Height : 49 mm
Diameter : 298 mm
Centering Diameter : 69.1 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 28 mm
Minimum Thickness : 26.4 mm
Num. of holes : 5
Solid or Vented : V -
参考号:F5LY-2C026-A
Rear Axle
Height : 45.6 mm
Diameter : 258 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 18.2 mm
Minimum Thickness : 16.7 mm
Num. of holes :5
Solid or Vented : V -
参考号:F5AZ-1125-A
Front Axle
Height : 65.9 mm
Diameter : 290.9 mm
Centering Diameter : 71.9 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 26.2 mm
Minimum Thickness : 24.7 mm
Num. of holes : 5
Solid or Vented : V -
参考号:43206-71U01
Rear Axle
Height : 63.9 mm
Diameter : 292.1 mm
Centering Diameter : 68.1 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 9 mm
Minimum Thickness : 7.9 mm
Num. of holes : 5
Solid or Vented : S -
参考号:F2AZ-2C026-A
Rear Axle
Height : 58.8 mm
Diameter : 290.1 mm
Centering Diameter : 70.6 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 12.7 mm
Minimum Thickness : 11.3 mm
Num. of holes : 5
Solid or Vented : S -
Front Axle
Height : 44.3 mm
Diameter : 300.2 mm
Centering Diameter : 63.8 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22.2 mm
Num. of holes : 4
Solid or Vented : V -
参考号:F3VY-1125-A
Front Axle
Height : 82.6 mm
Diameter : 281.4 mm
Centering Diameter : 71.9 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 26.2 mm
Minimum Thickness : 24.7 mm
Num. of holes : 5
Solid or Vented : V -
参考号:F2DZ-1125-B

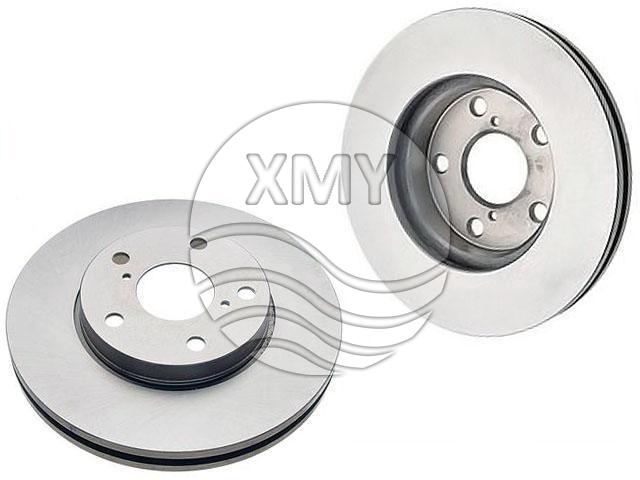

Front Axle
Height : 46.1 mm
Diameter : 258 mm
Centering Diameter : 71.1 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 26 mm
Minimum Thickness : 24.7 mm
Num. of holes : 5
Solid or Vented : V -
参考号:43512-24041
Front Axle
Height : 50.4 mm
Diameter : 274.7 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 28 mm
Minimum Thickness : 26 mm
Num. of holes : 5
Solid or Vented : V -
参考号:10434246
Front Axle
Height : 51.8 mm
Diameter : 300.1 mm
Centering Diameter : 71.1 mm
Pitch Circle Diameter : 114.3
Brake Disc Thickness : 30.1 mm
Minimum Thickness : 27 mm
Num. of holes : 5
Solid or Vented : V
