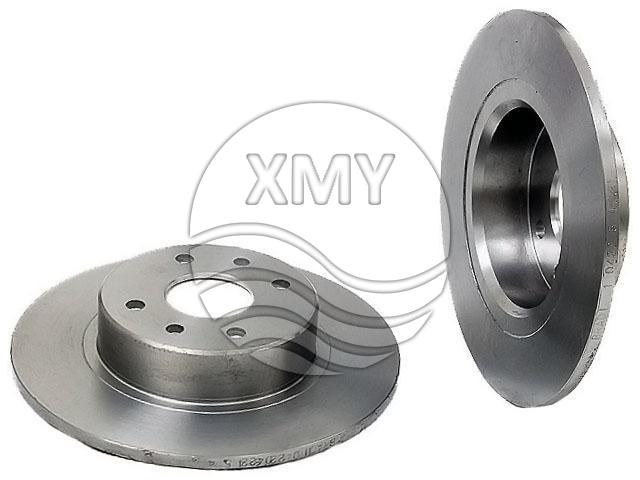

参考号:8-94387-588-0
Rear Axle
Height : 46.8 mm
Diameter : 256.4 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 9.1 mm
Minimum Thickness : 7.6 mm
Num. of holes : 4
Solid or Vented : S -
Front Axle
Height : 125.9 mm
Diameter : 316.7 mm
Pitch Circle Diameter : 165.1 mm
Brake Disc Thickness : 39 mm
Minimum Thickness : 37.2 mm
Num. of holes : 8
Solid or Vented : V -

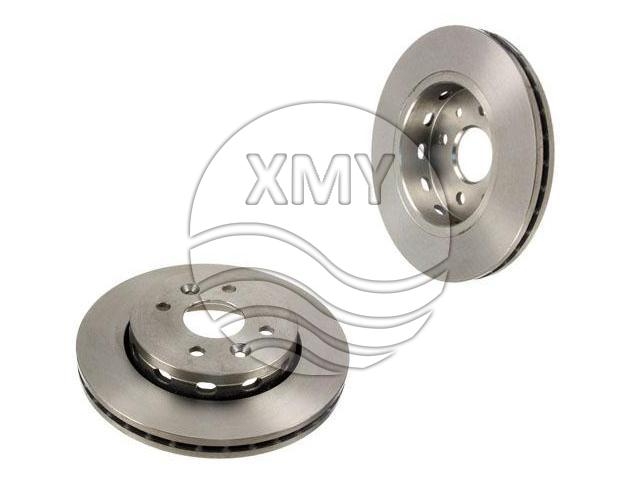

参考号:0K2N1-33-251
Front Axle
Height : 48.5 mm
Diameter : 257.8 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22 mm
Num. of holes : 4
Solid or Vented : V -
Rear Axle
Height : 37 mm
Diameter : 300 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 12 mm
Minimum Thickness : 10.5 mm
Num. of holes : 5
Solid or Vented : S -

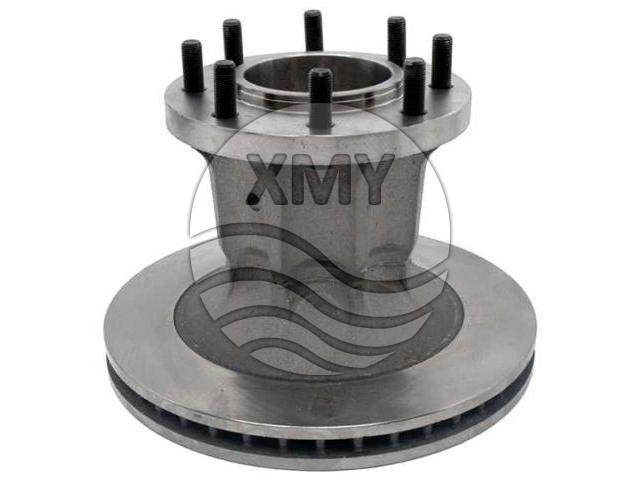

参考号:15589448
Front Axle
Height : 208.4 mm
Diameter : 317.5 mm
Pitch Circle Diameter : 165.1 mm
Brake Disc Thickness : 32.6 mm
Minimum Thickness : 30.9 mm
Num. of holes : 8
Solid or Vented : V -
Front Axle
Height : 59 mm
Diameter : 275 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 25 mm
Minimum Thickness : 23 mm
Num. of holes : 5
Solid or Vented : V -
参考号:10391043
Rear Axle
Height : 53.4 mm
Diameter : 331 mm
Centering Diameter : 75.7 mm
Pitch Circle Diameter : 132 mm
Brake Disc Thickness : 20 mm
Minimum Thickness : 18.4 mm
Num. of holes : 6
Solid or Vented : V -

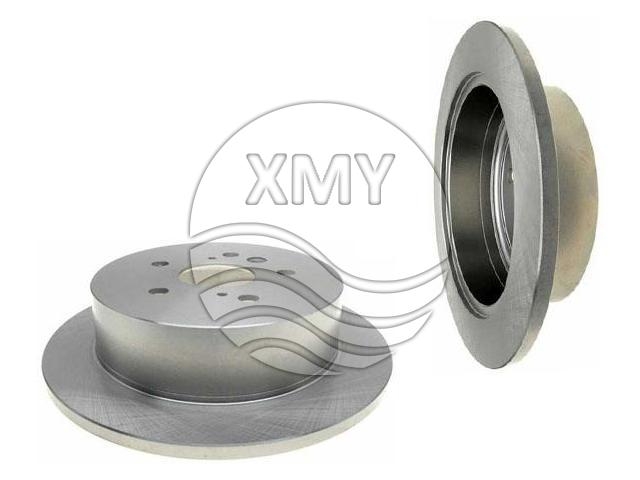

参考号:42431-08040
Rear Axle
Height : 68.6 mm
Diameter : 290.8 mm
Centering Diameter : 62.2 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 11.9 mm
Minimum Thickness : 10.4 mm
Num. of holes : 5
Solid or Vented : S -
Rear Axle
Height : 69.7 mm
Diameter : 309 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 10 mm
Minimum Thickness : 8.5 mm
Num. of holes : 5
Solid or Vented : S -
Front Axle
Height : 52 mm
Diameter : 323 mm
Centering Diameter : 70.9 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 32 mm
Minimum Thickness : 30.7 mm
Num. of holes : 6
Solid or Vented : V
