目录查询：
-
Rear Axle
Height : 67.3 mm
Diameter : 315.7 mm
Centering Diameter : 58.2 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 20.1 mm
Minimum Thickness : 18 mm
Num. of holes : 5
Solid or Vented : V
Weight : 7.9 kg -
Front Axle
Height : 120.7 mm
Diameter : 390.5 mm
Pitch Circle Diameter : 285.8 mm
Brake Disc Thickness : 39.1 mm
Minimum Thickness : 36.1 mm
Num. of holes : 6
Solid or Vented : V -
Front Axle
Height : 153.2 mm
Diameter : 390.1 mm
Centering Diameter : 163.8 mm
Pitch Circle Diameter : 222.3 mm
Brake Disc Thickness : 39 mm
Minimum Thickness : 35.9 mm
Num. of holes : 6
Solid or Vented : V -
Rear Axle
Height : 38.6 mm
Diameter : 329.9 mm
Centering Diameter : 68.1 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 10.9 mm
Minimum Thickness : 9.9 mm
Num. of holes : 5
Solid or Vented : S -
Front Axle
Height : 154 mm
Diameter : 391 mm
Centering Diameter : 220.7 mm
Pitch Circle Diameter : 285.8 mm
Brake Disc Thickness : 39 mm
Minimum Thickness : 35.9 mm
Num. of holes : 10
Solid or Vented : V -

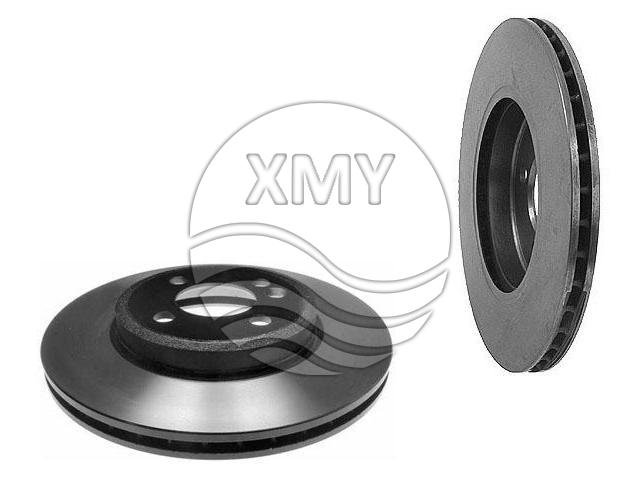

参考号:34 11 6 774 985
Front Axle
Height : 44.2 mm
Diameter : 279.7 mm
Centering Diameter : 64.3 mm
Pitch Circle Diameter : 99.8 mm
Brake Disc Thickness : 22.1 mm
Minimum Thickness : 20.3 mm
Num. of holes : 4
Solid or Vented : V
Weight : 5.5 kg -

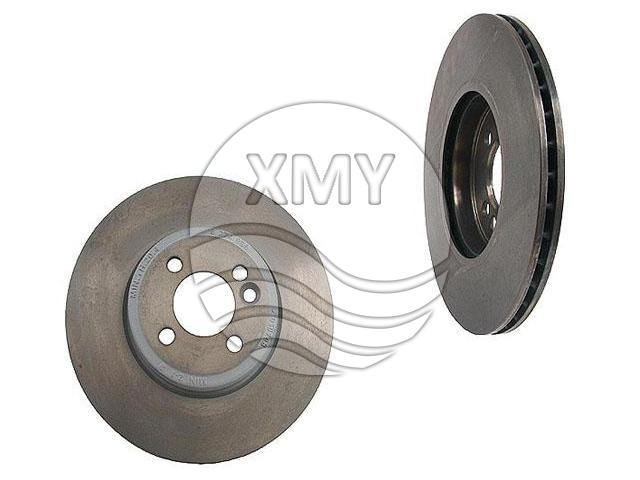

参考号:34 11 6 774 986
Front Axle
Height : 44.3 mm
Diameter : 294 mm
Centering Diameter : 64 mm
Pitch Circle Diameter : 100.1 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 20 mm
Num. of holes : 4
Solid or Vented : V
Weight : 6.4 kg -
Front Axle
Height : 96.4 mm
Diameter : 374.7 mm
Pitch Circle Diameter : 184.1 mm
Brake Disc Thickness : 34.2 mm
Minimum Thickness : 31.1 mm
Num. of holes : 6
Solid or Vented : V -
Rear Axle
Height : 63.4 mm
Diameter : 316 mm
Centering Diameter : 58 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 20.0 mm
Minimum Thickness : 18 mm
Num. of holes : 5 -
Front Axle
Height : 75.4 mm
Diameter : 362 mm
Centering Diameter : 116.8 mm
Pitch Circle Diameter : 152.4 mm
Brake Disc Thickness : 36.4 mm
Minimum Thickness : 33.5 mm
Num. of holes : 5
Solid or Vented : V
