Front Axle, Right
Height : 67 mm
Diameter : 298 mm
Centering Diameter : 98 mm
Pitch Circle Diameter : 130 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22 mm
Num. of holes : 5
Solid or Vented : V -
Rear Axle
Height : 67 mm
Diameter : 299 mm
Centering Diameter : 98 mm
Pitch Circle Diameter : 130 mm
Brake Disc Thickness : 20 mm
Minimum Thickness : 18 mm
Num. of holes : 5
Solid or Vented : V -

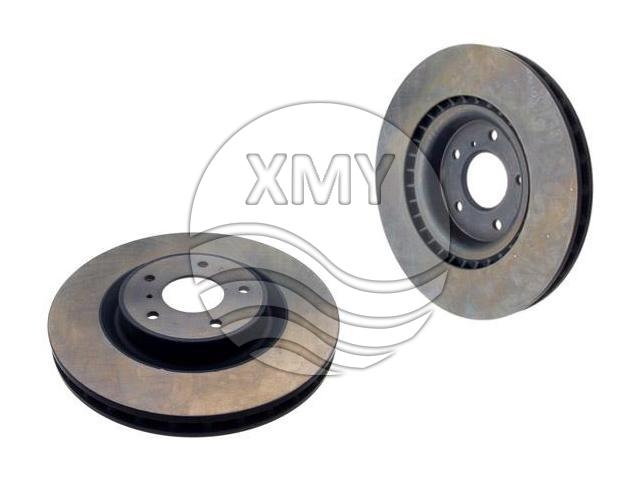

参考号:40206-CD005
Front Axle
Height : 49 mm
Diameter : 324 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 30 mm
Minimum Thickness : 28.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 9.1 kg -

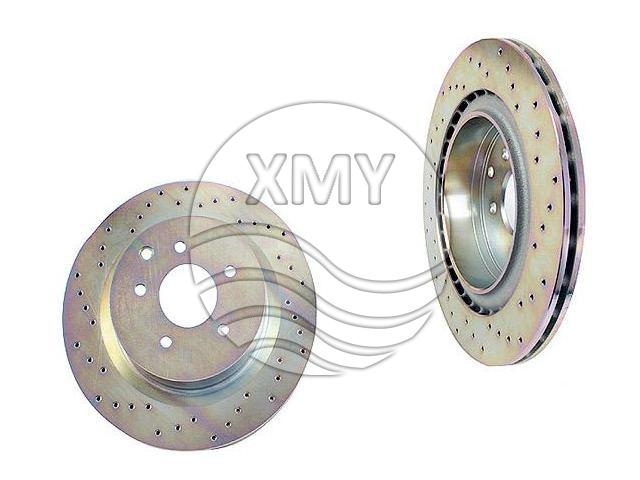

参考号:43206-CD005
Rear Axle
Height : 62.2 mm
Diameter : 322 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 22.2 mm
Minimum Thickness : 20.2 mm
Num. of holes : 5
Solid or Vented : V
Weight : 8 kg -
参考号:4E0 615 301 K
Front Axle
Height : 59.7 mm
Diameter : 385 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 36 mm
Minimum Thickness : 33.5 mm
Num. of holes : 5
Solid or Vented : V
Weight : 17.38 kg -
参考号:4E0 615 601 L
Rear Axle
Height : 42.4 mm
Diameter : 335 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 22 mm
Minimum Thickness : 20 mm
Num. of holes : 5
Solid or Vented : V -
Front Axle
Height : 61.4 mm
Diameter : 385 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 36 mm
Minimum Thickness : 33.5 mm
Num. of holes : 5
Solid or Vented : V -
Front Axle
Height : 52.4 mm
Diameter : 320 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 30 mm
Minimum Thickness : 28 mm
Num. of holes : 5
Solid or Vented : V
Weight : 9.9 kg -
参考号:8K0 615 301 M
Front Axle
Height : 52 mm
Diameter : 345 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 30 mm
Minimum Thickness : 28 mm
Num. of holes : 5
Solid or Vented : V
Weight : 10.8 kg -
参考号:8K0 615 601 B
Rear Axle
Height : 36.4 mm
Diameter : 300 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 12 mm
Minimum Thickness : 10 mm
Num. of holes : 5
Solid or Vented : S
Weight : 5.2 kg
Weight : 5.2 kg
