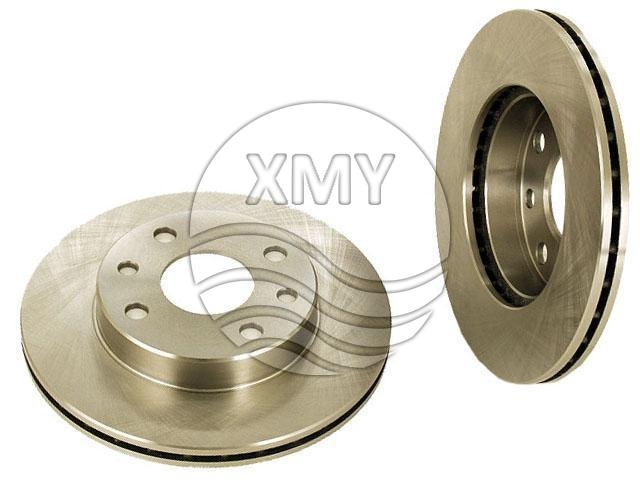

参考号:8-94243-687-1
Front Axle
Height : 42.9 mm
Diameter : 230.4 mm
Centering Diameter : 57.2 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 18 mm
Minimum Thickness : 16.8 mm
Num. of holes : 4
Solid or Vented : V
Weight : 3.5 kg -

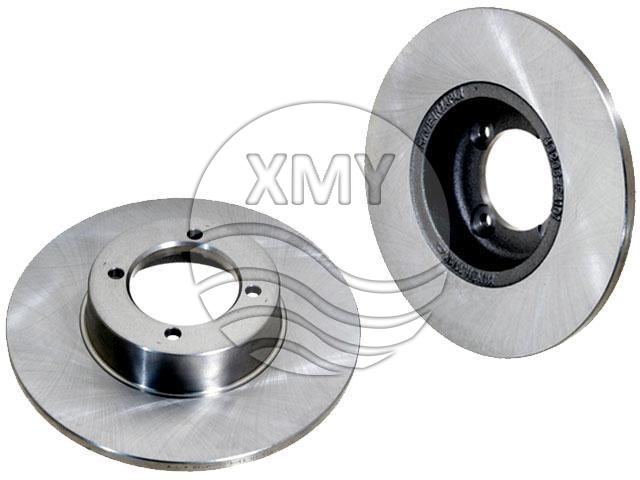

Front Axle
Height : 51.3 mm
Diameter : 271 mm
Centering Diameter : 81 mm
Pitch Circle Diameter : 103 mm
Brake Disc Thickness : 12.4 mm
Minimum Thickness : 10.4 mm
Num. of holes : 4
Solid or Vented : S -

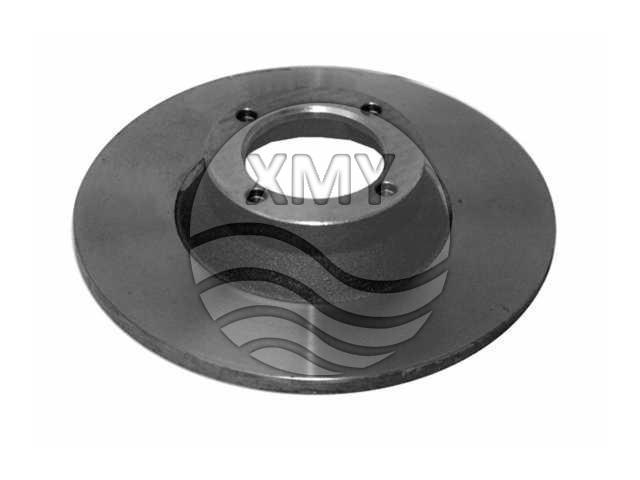

参考号:94204836
Front Axle
Height : 47 mm
Diameter : 238.8 mm
Pitch Circle Diameter : 87.9 mm
Brake Disc Thickness : 10.2 mm
Minimum Thickness : 8.6 mm
Num. of holes : 4
Solid or Vented : S -

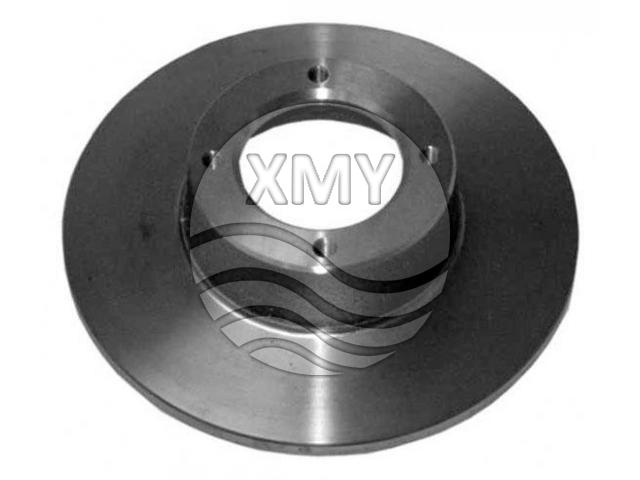

参考号:43512-20010
Front Axle
Height : 53.1 mm
Diameter : 243.8 mm
Centering Diameter : 73.9 mm
Pitch Circle Diameter : 98 mm
Brake Disc Thickness : 9.9 mm
Minimum Thickness : 8.9 mm
Num. of holes : 4
Solid or Vented : S -
Front Axle
Height : 49.6 mm
Diameter : 260.8 mm
Centering Diameter : 57.9 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 22.2 mm
Minimum Thickness : 20.7 mm
Num. of holes : 5
Solid or Vented : V -

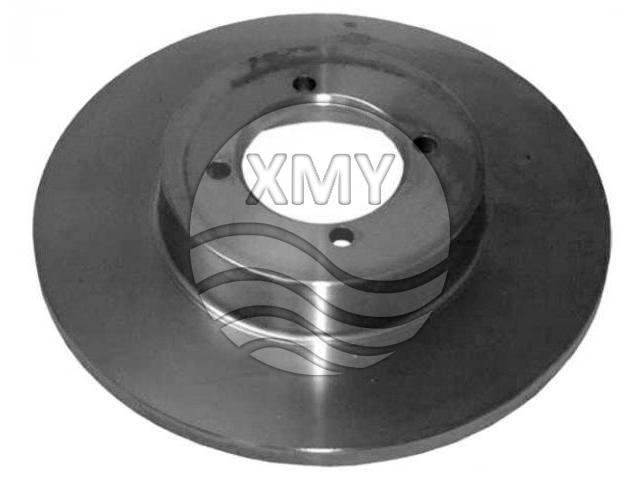

参考号:40206-U8700
Front Axle
Height : 47.8 mm
Diameter : 269.7 mm
Centering Diameter : 73.2 mm
Pitch Circle Diameter : 95 mm
Brake Disc Thickness : 12.4 mm
Minimum Thickness : 10.4 mm
Num. of holes : 4
Solid or Vented : S -

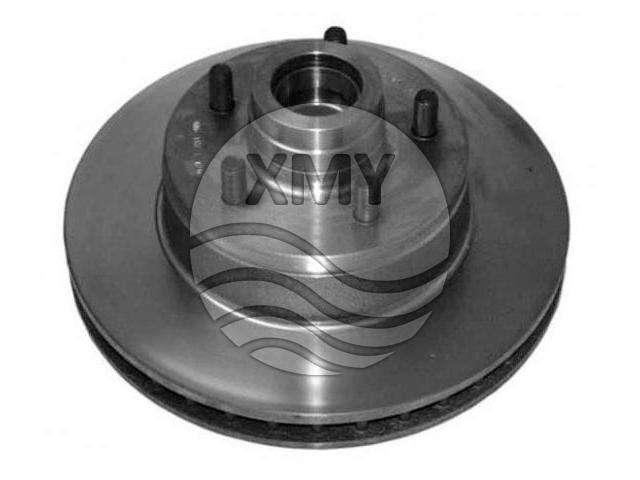

参考号:03229565
Front Axle
Height : 120.9 mm
Diameter : 274.8 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 30.2 mm
Minimum Thickness : 28.4 mm
Num. of holes : 5
Solid or Vented : V -

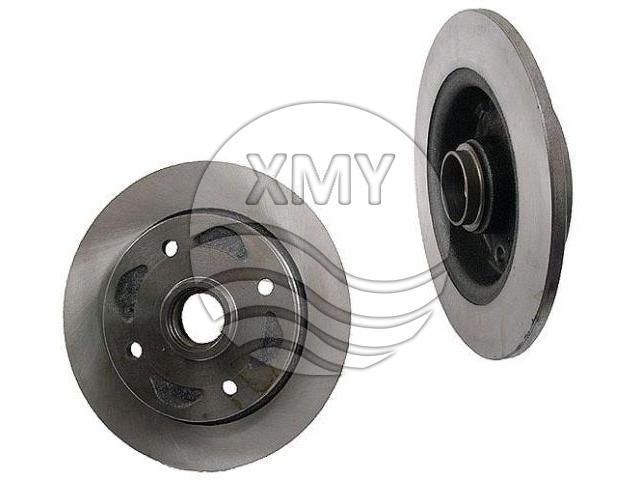

参考号:GE61-262-51
Rear Axle
Height : 72 mm
Diameter : 254 mm
Centering Diameter : 45.8 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 10.2 mm
Minimum Thickness : 9 mm
Num. of holes : 4
Solid or Vented : S -

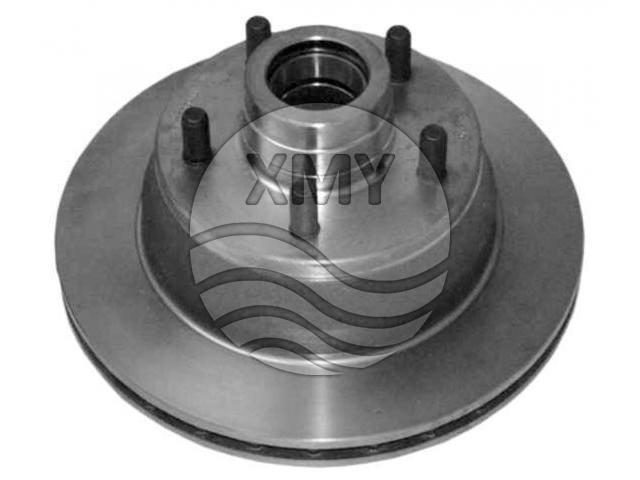

Front Axle
Height : 120.9 mm
Diameter : 261.1 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 22.4 mm
Minimum Thickness : 20.6 mm
Num. of holes : 5
Solid or Vented : V -

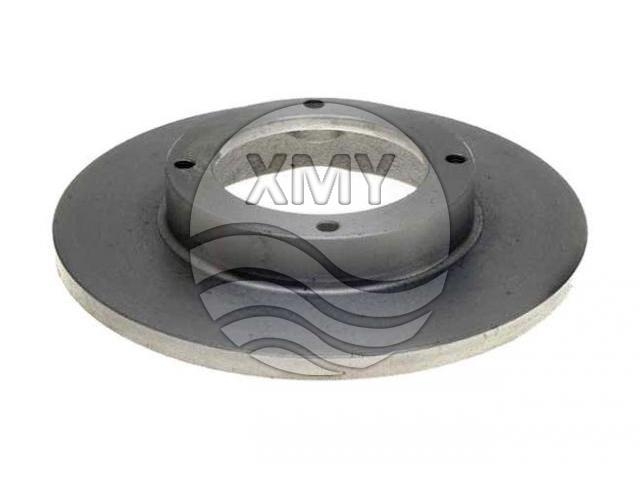

参考号:45251-663-670
Front Axle
Height : 36.6 mm
Diameter : 231.6 mm
Centering Diameter : 92.2 mm
Pitch Circle Diameter : 116 mm
Brake Disc Thickness : 11.9 mm
Minimum Thickness : 10.2 mm
Num. of holes : 4
Solid or Vented : S
