Front Axle
Height : 96.2 mm
Diameter : 236.2 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 19 mm
Minimum Thickness : 17.4 mm
Num. of holes : 4
Solid or Vented : V -
Rear Axle
Height : 65.8 mm
Diameter : 302 mm
Centering Diameter : 63.8 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 20.1 mm
Minimum Thickness : 18 mm
Num. of holes : 5
Solid or Vented : V
Weight : 7.3 kg -
Rear Axle
Height : 48 mm
Diameter : 246.9 mm
Centering Diameter : 90.2 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 10.4 mm
Minimum Thickness : 8.4 mm
Num. of holes : 4
Solid or Vented : S -
Rear Axle
Height : 71.1 mm
Diameter : 316.5 mm
Centering Diameter : 90.4 mm
Pitch Circle Diameter : 139.7 mm
Brake Disc Thickness : 22.1 mm
Minimum Thickness : 20.6 mm
Num. of holes : 5
Solid or Vented : V -

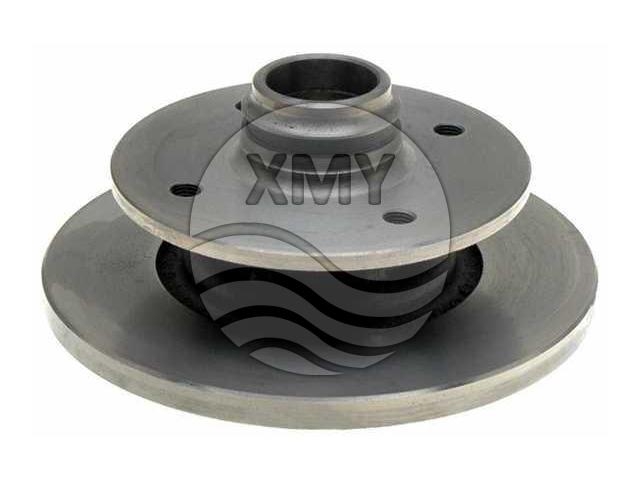

参考号:8532-33-251C
Front Axle
Height : 95.5 mm
Diameter : 207 mm
Pitch Circle Diameter : 110 mm
Brake Disc Thickness : 13.2 mm
Minimum Thickness : 11.9 mm
Solid or Vented : S
Weight : 4.68 kg -
Front Axle
Height : 121.1 mm
Diameter : 261.1 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 22.2 mm
Minimum Thickness : 20.6 mm
Num. of holes : 5
Solid or Vented : V -
Front Axle
Height : 26.6 mm
Diameter : 254 mm
Centering Diameter : 76.2 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 12.6 mm
Minimum Thickness : 11.5 mm
Num. of holes : 4
Solid or Vented : S -
Front Axle
Height : 177 mm
Diameter : 319 mm
Pitch Circle Diameter : 165.1 mm
Brake Disc Thickness : 31.8 mm
Minimum Thickness : 30 mm
Num. of holes : 8
Solid or Vented : V -

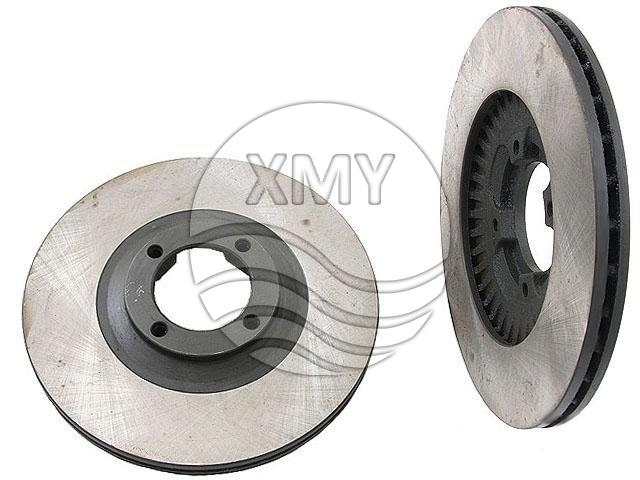

参考号:8-94457-707-1
Front Axle
Height : 32 mm
Diameter : 249.9 mm
Centering Diameter : 68.1 mm
Pitch Circle Diameter : 88 mm
Brake Disc Thickness : 18 mm
Minimum Thickness : 16.5 mm
Num. of holes : 4
Solid or Vented : V -
Front Axle
Height : 40.1 mm
Diameter : 231.9 mm
Centering Diameter : 68.1 mm
Pitch Circle Diameter : 90 mm
Brake Disc Thickness : 9.9 mm
Minimum Thickness : 8.4 mm
Num. of holes : 4
Solid or Vented : S
