目录查询：
-
参考号:970 423 02 12
Rear Axle
Height : 129.5 mm
Diameter : 330 mm
Centering Diameter : 118 mm
Pitch Circle Diameter : 177 mm
Brake Disc Thickness : 34.0 mm
Minimum Thickness : 26 mm
Num. of holes : 8
Solid or Vented : V
Weight : 17.6 kg -
参考号:5 024 175
Rear Axle
Height : 43 mm
Diameter : 273 mm
Centering Diameter : 63 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 20 mm
Minimum Thickness : 18 mm
Num. of holes : 4
Solid or Vented : V -
参考号:77 01 204 303
Rear Axle
Height : 74.6 mm
Diameter : 238 mm
Centering Diameter : 52.3 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 8.0 mm
Minimum Thickness : 7 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.6 kg -
参考号:8R0 615 301
Front Axle
Height : 52.4 mm
Diameter : 320 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 30 mm
Minimum Thickness : 28 mm
Num. of holes : 5
Solid or Vented : V
Weight : 10 kg -
参考号:4G0 615 301
Front Axle
Height : 52.4 mm
Diameter : 345 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 30 mm
Minimum Thickness : 28 mm
Num. of holes : 5
Solid or Vented : V
Weight : 11.1 kg -
Front Axle, Left
Height : 66 mm
Diameter : 348 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 36 mm
Minimum Thickness : 34.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 12.9 kg -
Front Axle, Right
Height : 66 mm
Diameter : 348 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 36 mm
Minimum Thickness : 34.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 12.9 kg -
参考号:34 21 6 787 931
Rear Axle
Height : 67 mm
Diameter : 324 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 22 mm
Minimum Thickness : 20.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 7.8 kg -

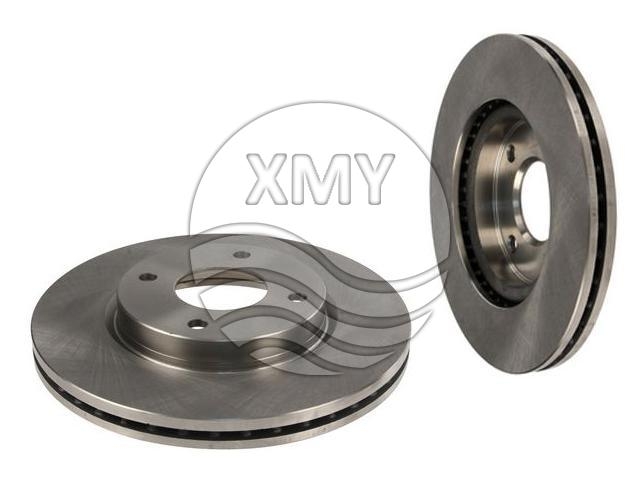

参考号:40206-EM10A
Front Axle
Height : 44 mm
Diameter : 280 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22 mm
Num. of holes : 4
Solid or Vented : V
Weight : 6.4 kg -
参考号:43206-EM10A
Rear Axle
Height : 62 mm
Diameter : 292 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 9 mm
Minimum Thickness : 8 mm
Num. of holes : 4
Solid or Vented : S
Weight : 4.7 kg
