目录查询：
-
Front Axle
Height : 44
Diameter : 280 mm
Centering Diameter : 61 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 24.0 mm
Minimum Thickness : 44 mm
Num. of holes : 5
Solid or Vented : V
Weight : 7.3 kg -

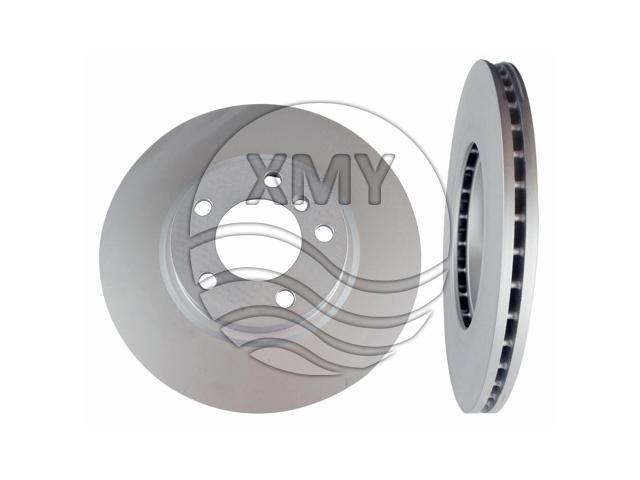

参考号:34 11 9 804 829
Front Axle
Height : 45.2 mm
Diameter : 307 mm
Centering Diameter : 79 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 24.0 mm
Minimum Thickness : 22.4 mm
Number of Holes : 5
Solid Or Vented : V
Weight : 7.8 kg -

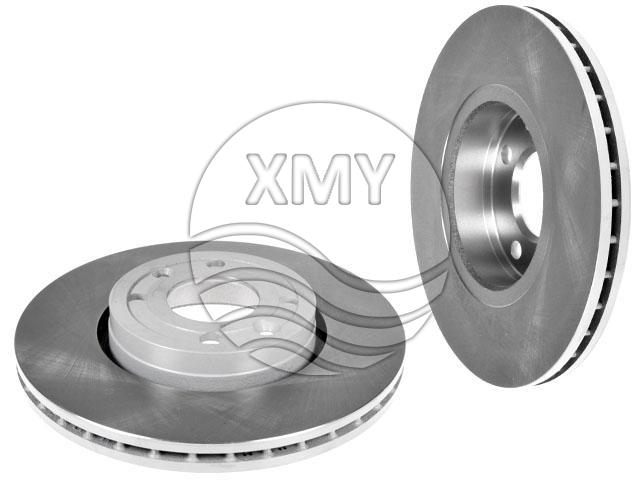

参考号:77 01 210 081
Front Axle
Height : 44 mm
Diameter : 258 mm
Centering Diameter : 61 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 19.8 mm
Number of Holes : 4
Solid Or Vented : V
Weight : 5.4kg -

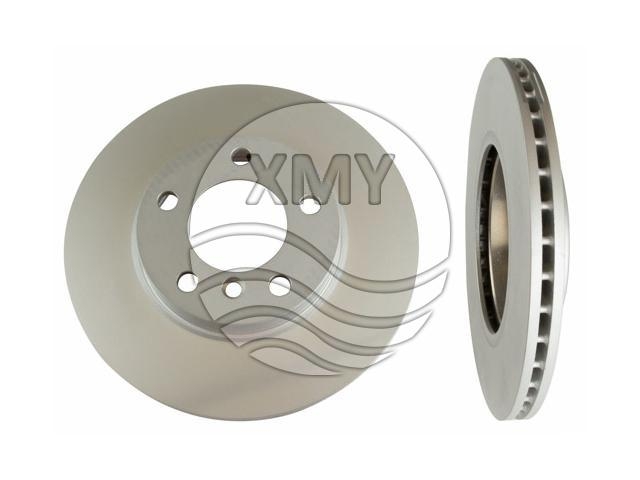

参考号:34 11 9 804 828
Front Axle
Height : 45.2 mm
Diameter : 294 mm
Centering Diameter : 79 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 20.4 mm
Number of Holes : 5
Solid Or Vented : V
Weight : 6.6 kg -
参考号:1K0 615 301 AD
Front Axle
Height : 49.7 mm
Diameter : 340 mm
Centering Diameter : 65 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 30 mm
Minimum Thickness : 27 mm
Number of Holes : 5
Solid Or Vented : V -
参考号:4H0 615 601 H
Rear Axle
Height : 36.4 mm
Diameter : 330 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 22 mm
Minimum Thickness : 20 mm
Number Of Holes : 5
Solid Or Vented : V
Weight : 7.5 kg -
参考号:4H0 615 601 F
Rear Axle
Height : 36.2 mm
Diameter : 356 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 22.00 mm
Minimum Thickness : 20 mm
Number Of Holes : 5
Solid Or Vented : V -

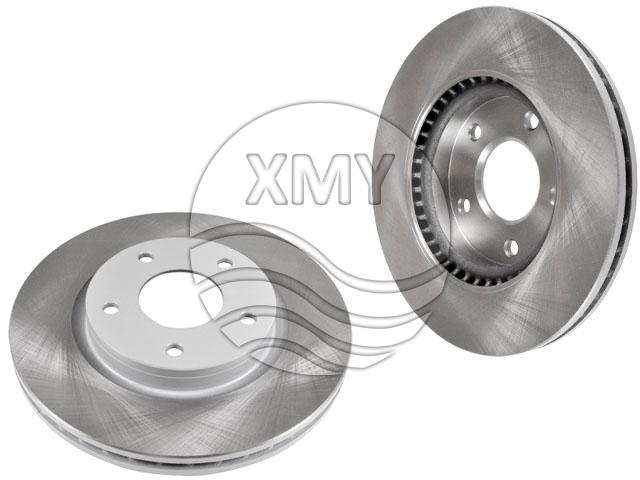

参考号:40206-1KA3A
Front Axle
Height : 44 mm
Diameter : 280 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22 mm
Number Of Holes : 5
Solid Or Vented : V
Weight : 6.5 kg -
Front Axle
Height : 44 mm
Diameter : 296 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 26 mm
Minimum Thickness : 24 mm
Number Of Holes : 5
Solid Or Vented : V
Weight : 7.5 kg -
Front Axle
Height : 55.8 mm
Diameter : 283 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 28 mm
Minimum Thickness : 26 mm
Number of Holes : 5
Solid Or Vented : V
