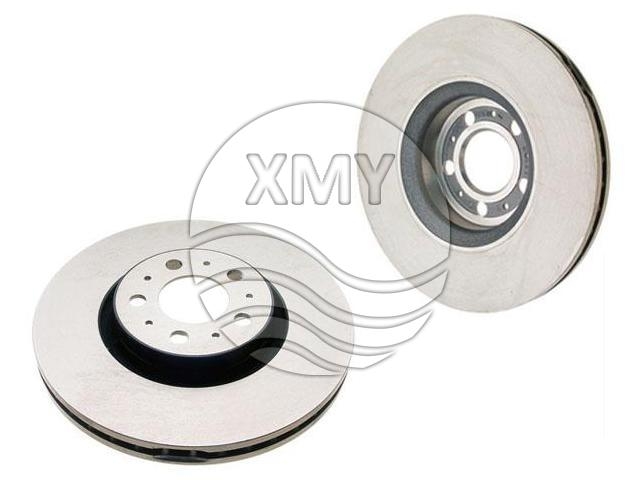

参考号:3063 6074
Front Axle
Height : 50 mm
Diameter : 316 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 28.0 mm
Minimum Thickness : 25 mm
Num. of holes : 5
Solid or Vented : V
Weight : 8.5 kg -

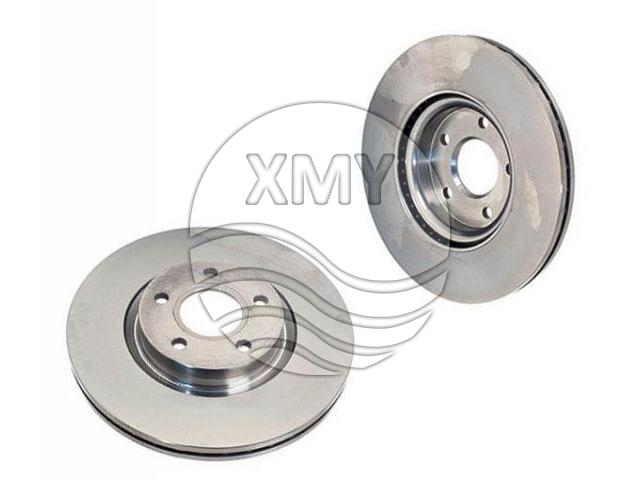

参考号:274 510
Front Axle
Height : 48.5 mm
Diameter : 300 mm
Centering Diameter : 63.5 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 25.0 mm
Minimum Thickness : 23 mm
Num. of holes : 5
Solid or Vented : V
Weight : 8.1 kg -

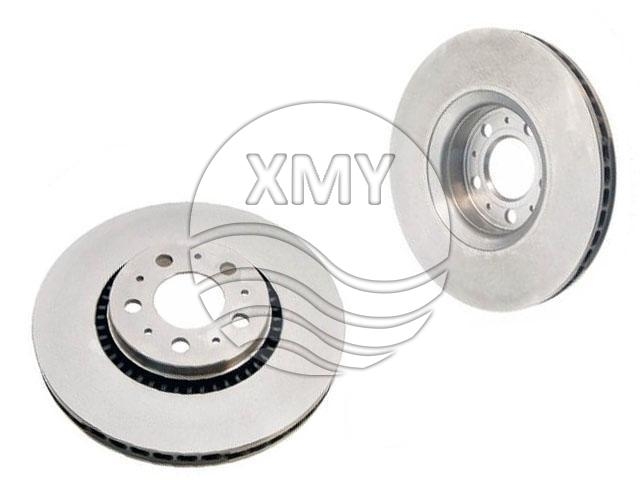

参考号:274 170
Front Axle
Height : 50.3 mm
Diameter : 305 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 27.9 mm
Minimum Thickness : 25 mm
Num. of holes : 5
Solid or Vented : V
Weight : 9.3 kg -

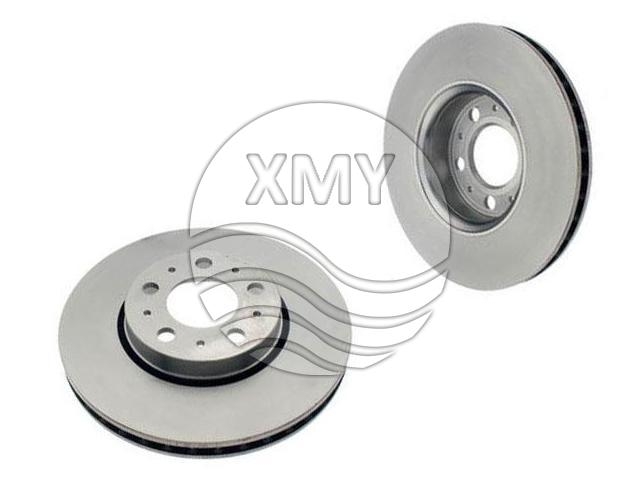

参考号:272 403
Front Axle
Height : 50.3 mm
Diameter : 285.5 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 26.0 mm
Minimum Thickness : 23 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.9 kg -

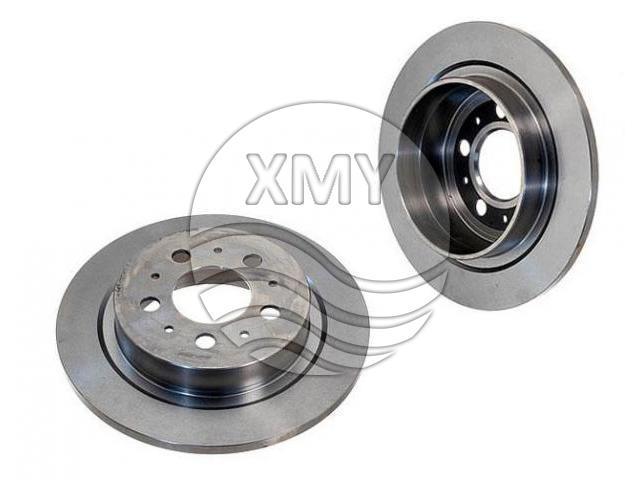

参考号:272 301
Rear Axle
Height : 71 mm
Diameter : 277 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 11.9 mm
Minimum Thickness : 10 mm
Num. of holes : 5
Solid or Vented : S
Weight : 5 kg -

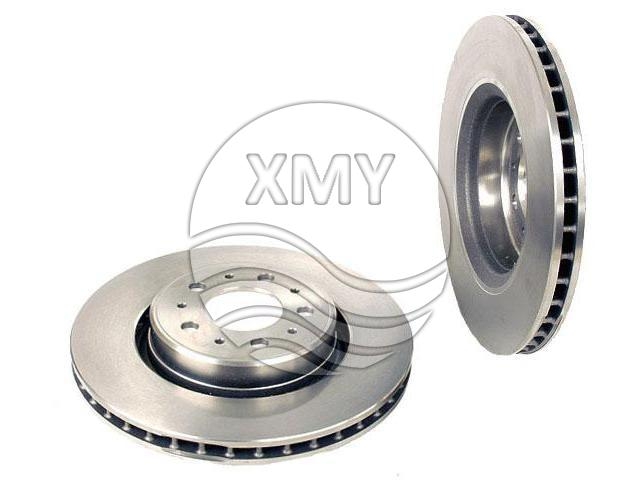

参考号:272 276
Front Axle
Height : 50 mm
Diameter : 302 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 26.0 mm
Minimum Thickness : 23 mm
Num. of holes : 5
Solid or Vented : V
Weight : 7.2 kg -

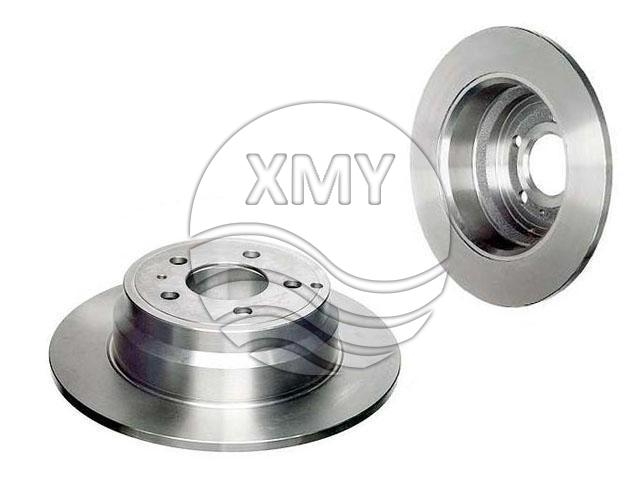

参考号:271 794
Rear Axle
Height : 72 mm
Diameter : 295 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 9.6 mm
Minimum Thickness : 8.4 mm
Num. of holes : 5
Solid or Vented : S
Weight : 6.3 kg -

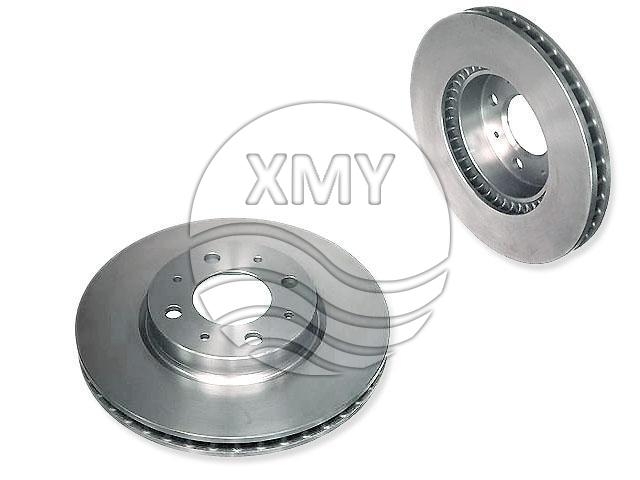

参考号:271 590
Front Axle
Height : 50.5 mm
Diameter : 279.4 mm
Centering Diameter : 68.1 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 26.2 mm
Minimum Thickness : 23.1 mm
Num. of holes : 4
Solid or Vented : V
Weight : 6.37 kg -

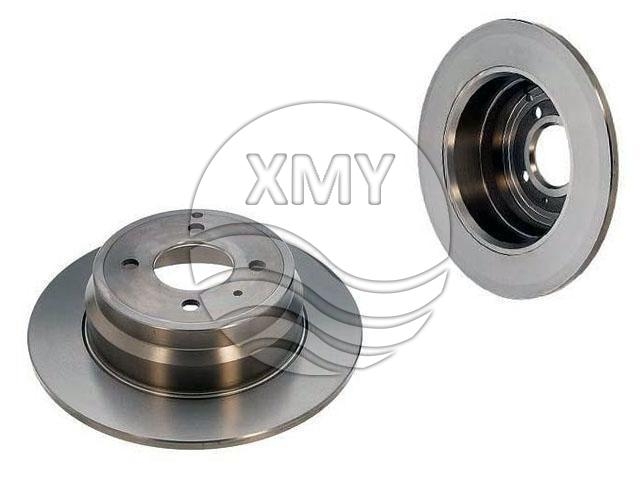

参考号:271 497
Rear Axle
Height : 72 mm
Diameter : 295 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 9.6 mm
Minimum Thickness : 8.4 mm
Num. of holes : 4
Solid or Vented : S
Weight : 4.95 kg -

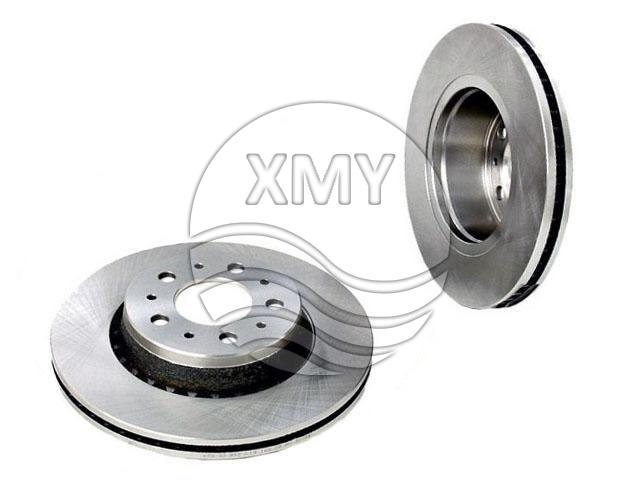

参考号:270 878
Front Axle
Height : 56 mm
Diameter : 287 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 22 mm
Minimum Thickness : 20 mm
Num. of holes : 5
Solid or Vented : V
