参考号:1K0 615 301 T
Front Axle
Height : 49.6 mm
Diameter : 287.8 mm
Centering Diameter : 65 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 25 mm
Minimum Thickness : 22 mm
Num. of holes : 5
Solid or Vented : V
Weight : 7.3 kg -
参考号:1K0 615 301 S
Front Axle
Height : 49.9 mm
Diameter : 280 mm
Centering Diameter : 65 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 19 mm
Solid or Vented : V
Weight : 5.9 kg -
参考号:1K0 615 301 AA
Front Axle
Height : 49.9 mm
Diameter : 312 mm
Centering Diameter : 65 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 25 mm
Minimum Thickness : 22 mm
Solid or Vented : V
Weight : 8.6 kg -
Rear Axle
Height : 33.4 mm
Diameter : 239 mm
Centering Diameter : 65 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 8.9 mm
Minimum Thickness : 7 mm
Num. of holes : 5
Solid or Vented : S
Weight : 2.7 kg -
参考号:1J0 615 601
Rear Axle
Height : 39.5 mm
Diameter : 232 mm
Centering Diameter : 65 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 9.0 mm
Minimum Thickness : 7 mm
Num. of holes : 5
Solid or Vented : S
Weight : 2.6 kg -
参考号:1J0 615 301 R
Front Axle
Height : 34.5 mm
Diameter : 288 mm
Centering Diameter : 65 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 25.0 mm
Minimum Thickness : 22 mm
Num. of holes : 5
Solid or Vented : V
Weight : 7.2 kg -
参考号:1J0 615 301 E
Front Axle
Height : 36.7 mm
Diameter : 280 mm
Centering Diameter : 65 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 19 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6 kg -
参考号:1J0 615 301 D
Front Axle
Height : 36.6 mm
Diameter : 256 mm
Centering Diameter : 65 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 19 mm
Num. of holes : 5
Solid or Vented : V
Weight : 5.1 kg -

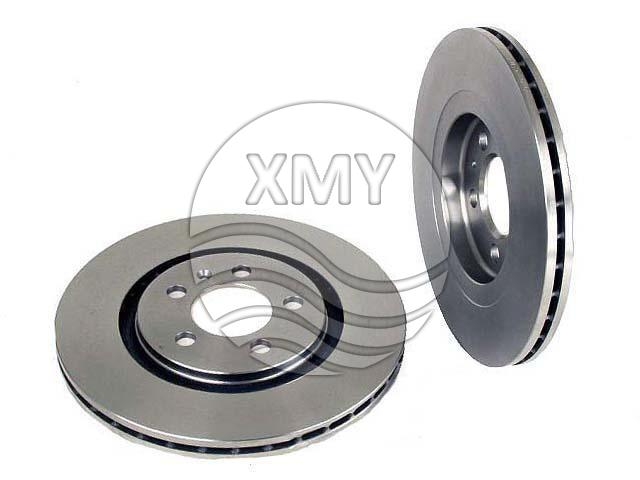

参考号:1H0 615 301 A
Front Axle
Height : 28.5 mm
Diameter : 280 mm
Centering Diameter : 65 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 20 mm
Num. of holes : 5
Solid or Vented : RV
Weight : 5.65 kg -

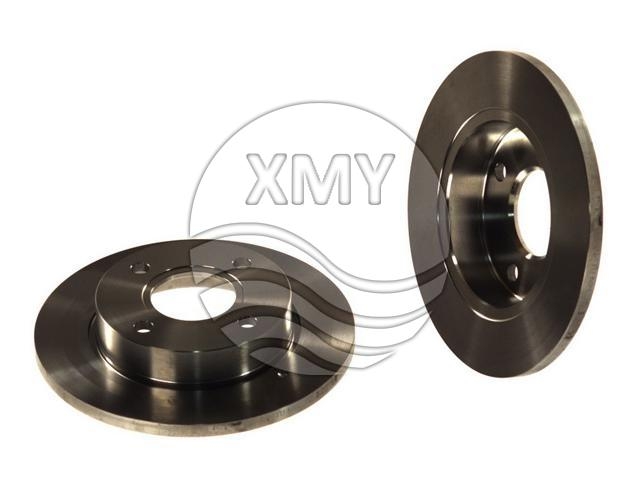

参考号:1E03-33-251
Front Axle
Height : 42.9 mm
Diameter : 239.5 mm
Centering Diameter : 63.5 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 12.0 mm
Minimum Thickness : 10 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.6 kg
