目录查询：
-
参考号:0569 021
Front Axle
Height : 41 mm
Diameter : 240 mm
Centering Diameter : 60 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 20.0 mm
Minimum Thickness : 17 mm
Num. of holes : 6
Solid or Vented : V
Weight : 4 kg -
参考号:0569 019
Front Axle
Height : 52 mm
Diameter : 278 mm
Centering Diameter : 70.6 mm
Pitch Circle Diameter : 118 mm
Brake Disc Thickness : 32.2 mm
Minimum Thickness : 30.7 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.8 kg -
参考号:0569 017
Front Axle
Height : 41 mm
Diameter : 236 mm
Centering Diameter : 60 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 7 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3 kg -
参考号:0569 007
Front Axle
Height : 43 mm
Diameter : 280 mm
Centering Diameter : 60 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 25.0 mm
Minimum Thickness : 22 mm
Num. of holes : 6
Solid or Vented : V
Weight : 6.6 kg -
参考号:0569 006
Front Axle
Height : 42 mm
Diameter : 280 mm
Centering Diameter : 60 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 25 mm
Minimum Thickness : 22 mm
Num. of holes : 6
Solid or Vented : V
Weight : 6.6 kg -
参考号:0569 004
Front Axle
Height : 45 mm
Diameter : 302 mm
Centering Diameter : 70 mm
Pitch Circle Diameter : 110 mm
Brake Disc Thickness : 28 mm
Minimum Thickness : 25 mm
Num. of holes : 5
Solid or Vented : V
Weight : 8.5 kg -
参考号:0569 003
Front Axle
Height : 42 mm
Diameter : 285 mm
Centering Diameter : 70 mm
Pitch Circle Diameter : 110 mm
Brake Disc Thickness : 25 mm
Minimum Thickness : 22 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.8 kg -
参考号:04683918AB
Front Axle
Height : 38.9 mm
Diameter : 302 mm
Centering Diameter : 73.5 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 28 mm
Minimum Thickness : 26.5 mm
Num. of holes : 5
Solid or Vented : V
Weight : 7.7 kg -

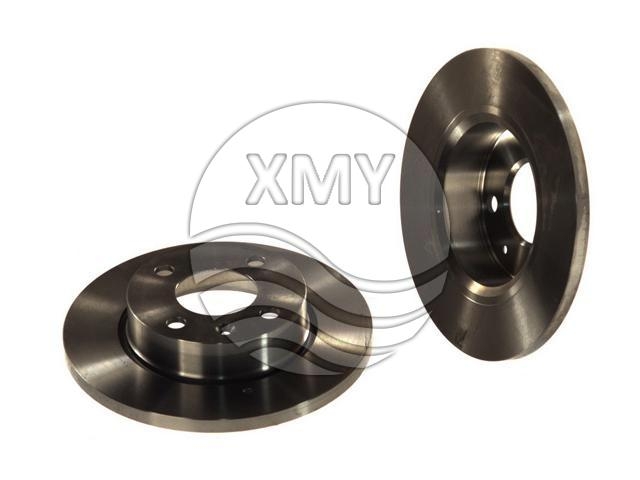

参考号:002 415 019
Front Axle
Height : 45.7 mm
Diameter : 236 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 12.8 mm
Minimum Thickness : 11.4 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.7 kg -

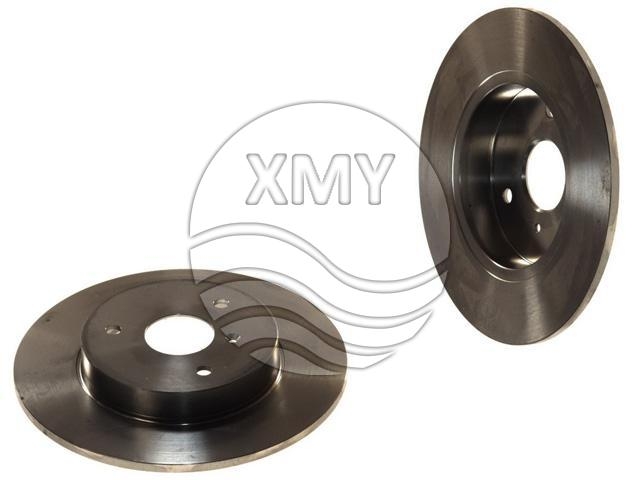

参考号:00043 41 V002
Front Axle
Height : 38 mm
Diameter : 280 mm
Centering Diameter : 58 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 9 mm
Minimum Thickness : 8 mm
Num. of holes : 3
Solid or Vented : S
Weight : 4.8 kg
