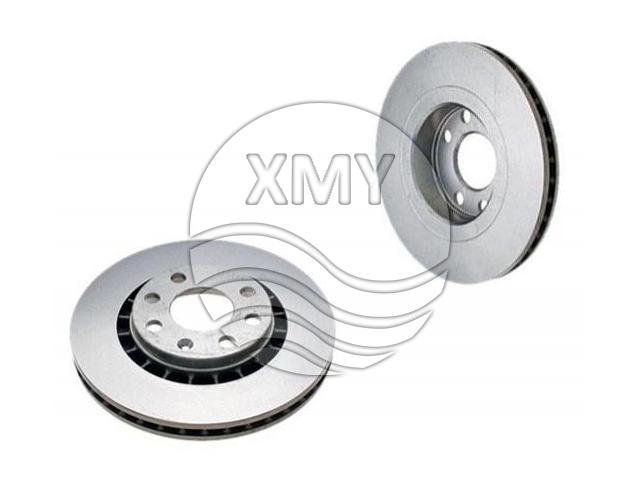

参考号:05 69 001
Front Axle
Height : 41 mm
Diameter : 256 mm
Centering Diameter : 60 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 24.0 mm
Minimum Thickness : 21 mm
Num. of holes : 4
Solid or Vented : V
Weight : 5.2 kg -

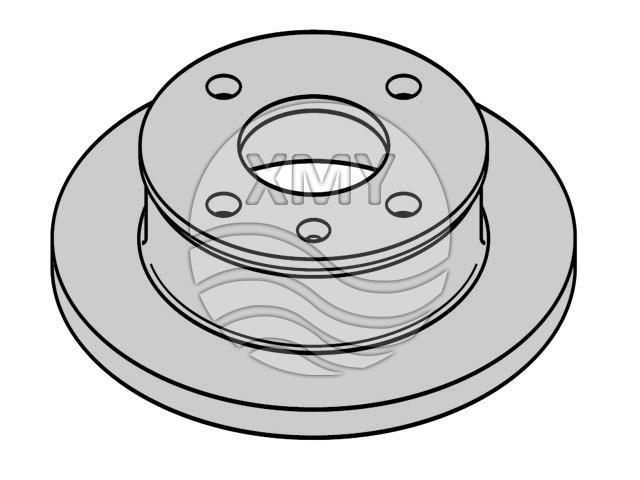

参考号:5 022 650
Front Axle
Height : 42 mm
Diameter : 221 mm
Centering Diameter : 72 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8.7 mm
Num. of holes : 4
Solid or Vented : S
Weight : 2.8 kg -
参考号:5 022 662
Front Axle
Height : 58 mm
Diameter : 240 mm
Centering Diameter : 64 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 13 mm
Minimum Thickness : 11.4 mm
Num. of holes : 4
Solid or Vented : S
Weight : 4 kg -

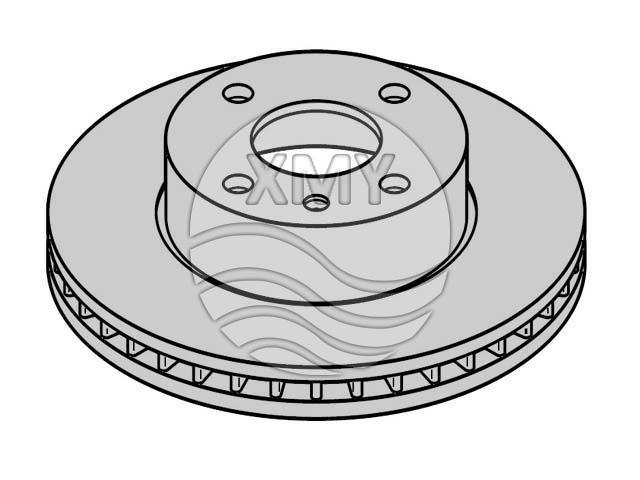

参考号:5 022 663
Front Axle
Height : 58.1 mm
Diameter : 260 mm
Centering Diameter : 63.5 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 24.2 mm
Minimum Thickness : 22.2 mm
Num. of holes : 4
Solid or Vented : V
Weight : 5.3 kg -

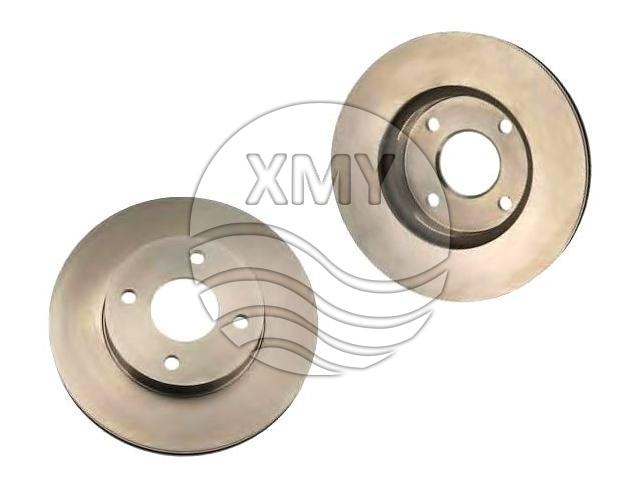

参考号:5 022 664
Front Axle
Height : 53 mm
Diameter : 260 mm
Centering Diameter : 63.5 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 24.3 mm
Minimum Thickness : 22.8 mm
Num. of holes : 4
Solid or Vented : V -

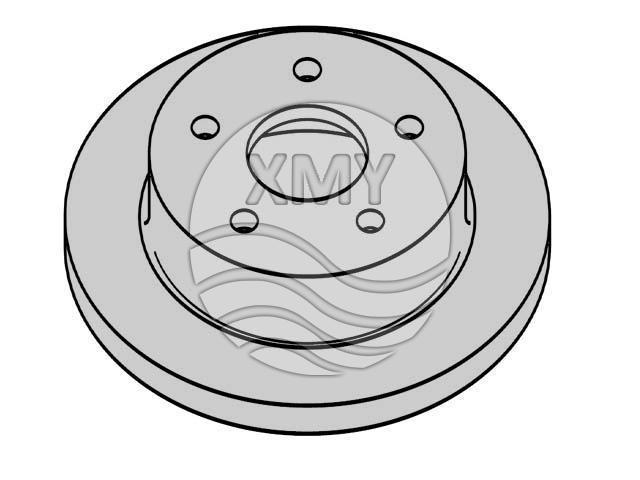

参考号:5 022 676
Front Axle
Height : 31.5 mm
Diameter : 254 mm
Centering Diameter : 78.5 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 14.3 mm
Minimum Thickness : 12.9 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4.95 kg -

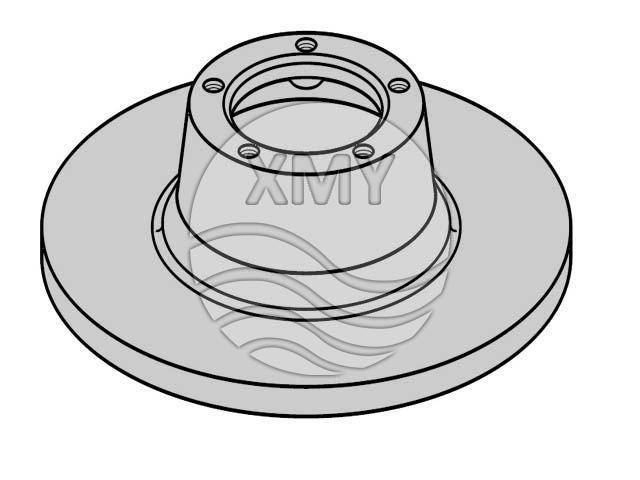

参考号:5 022 677
Front Axle
Height : 71.2 mm
Diameter : 270 mm
Centering Diameter : 78.5 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 14.3 mm
Minimum Thickness : 12.9 mm
Num. of holes : 5
Solid or Vented : S
Weight : 5.5 kg -
参考号:5 024 744
Front Axle
Height : 58.1 mm
Diameter : 239.5 mm
Centering Diameter : 63.6 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 10 mm
Minimum Thickness : 8.7 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.53 kg -

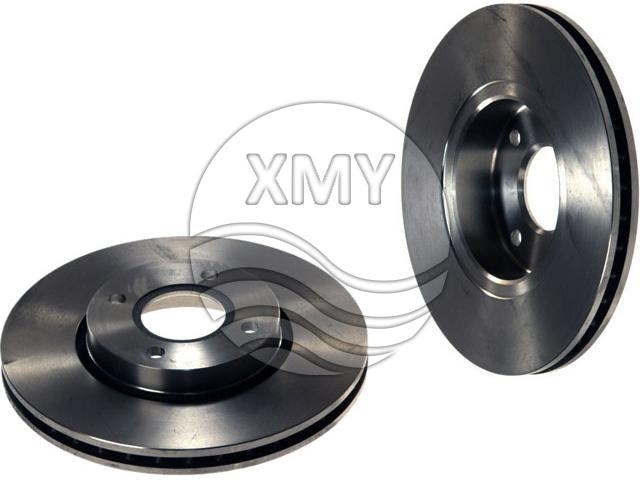

参考号:5 026 785
Front Axle
Height : 46.9 mm
Diameter : 278 mm
Centering Diameter : 63.5 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 24.1 mm
Minimum Thickness : 22.2 mm
Num. of holes : 4
Solid or Vented : V
Weight : 6.2 kg -

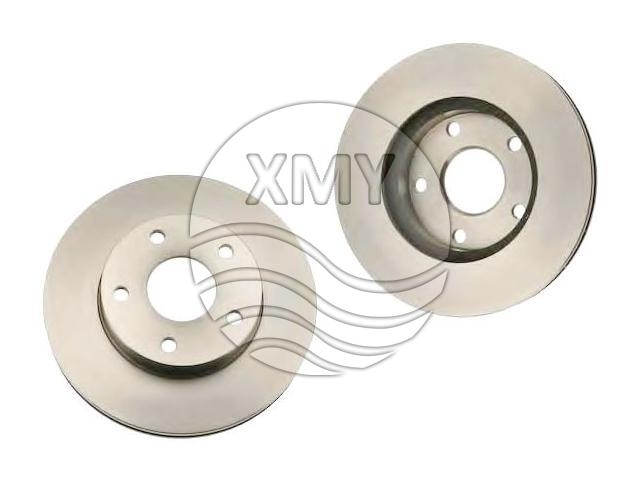

参考号:5 027 463
Front Axle
Height : 53.1 mm
Diameter : 260 mm
Centering Diameter : 63.5 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 24.2 mm
Minimum Thickness : 22.2 mm
Num. of holes : 5
Solid or Vented : V
Weight : 5.4 kg
