参考号:270 737
Front Axle
Height : 65 mm
Diameter : 263 mm
Centering Diameter : 68.1 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 14.3 mm
Minimum Thickness : 12.7 mm
Num. of holes : 5
Solid or Vented : S
Weight : 5.17 kg -
-
参考号:34 11 6 767 061
Front Axle
Height : 76.3 mm
Diameter : 296 mm
Centering Diameter : 79 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 22 mm
Minimum Thickness : 20.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 7.4 kg -
参考号:210 421 24 12
Front Axle
Height : 46.5 mm
Diameter : 288 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 25.0 mm
Minimum Thickness : 22.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.6 kg -
参考号:124 423 08 12
Rear Axle
Height : 55.5 mm
Diameter : 278 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 24.0 mm
Minimum Thickness : 21.4 mm
Num. of holes : 5
Solid or Vented : V -
参考号:34 11 1 159 602
Front Axle
Height : 77 mm
Diameter : 324 mm
Centering Diameter : 79 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 30.0 mm
Minimum Thickness : 28.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 10.4 kg -
参考号:42510-S84-A50
Rear Axle
Height : 48.1 mm
Diameter : 260 mm
Centering Diameter : 64.1 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 9.0 mm
Minimum Thickness : 8 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.7 kg -
参考号:42510-SD2-A00
Rear Axle
Height : 33.7 mm
Diameter : 238.5 mm
Centering Diameter : 48 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 10 mm
Minimum Thickness : 8 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.2 kg -

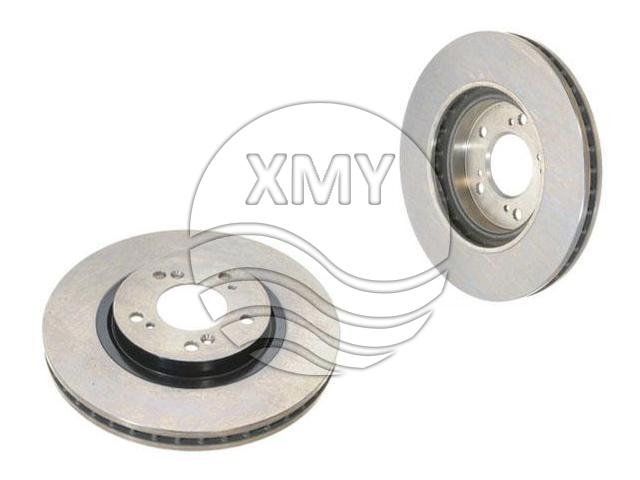

参考号:45251-S1A-E20
Front Axle
Height : 47.2 mm
Diameter : 300 mm
Centering Diameter : 70 mm
Pitch Circle Diameter : 114 mm
Brake Disc Thickness : 28 mm
Minimum Thickness : 26 mm
Num. of holes : 5
Solid or Vented : V -
参考号:45251-S2H-N00
Front Axle
Height : 47.1 mm
Diameter : 282 mm
Centering Diameter : 70.2 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 23.0 mm
Minimum Thickness : 21 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6 kg
